SCHNEIDER ELECTRIC Modicon M340 connectors, HS code: 85369010, COO: FR, 0.03kg /PO:40550056/ | Spark & Co
  • 3D
|

СКУ: BMXXTSHSC20

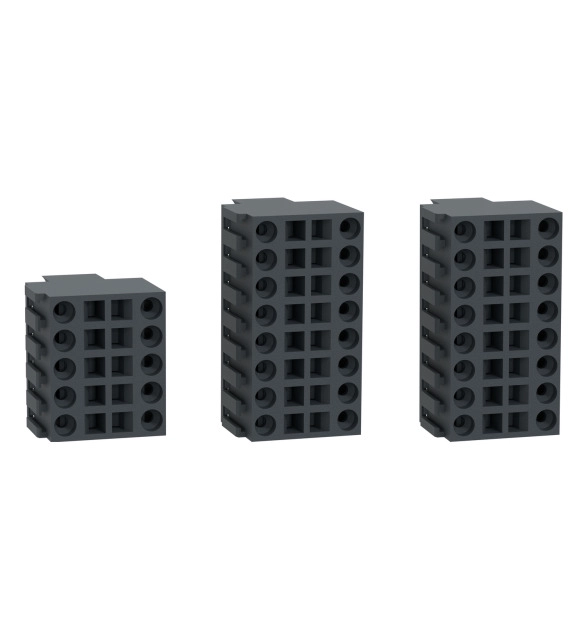

SCHNEIDER ELECTRIC Modicon M340 connectors, HS code: 85369010, COO: FR, 0.03kg /PO:40550056/

  • Brand
    Schneider Electric
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Appendant operation agent (Ex ib)
    FALSE
  • Suitable for safety functions
    FALSE
  • Rail mounting possible
    TRUE
  • Explosion safety category for dust
    EV000154
  • Explosion safety category for gas
    EV000154
  • Depth
    19
  • Wall mounting/direct mounting
    TRUE
  • Redundancy
    FALSE
  • Rack-assembly possible
    TRUE
  • Front built-in possible
    TRUE
  • Appendant operation agent (Ex ia)
    TRUE
  • Number of slots
    8
  • With integrated power supply
    TRUE
  • Height
    103.7
  • Width
    372.8

This ComPacT NSXm device is a 4 poles circuit breaker designed to optimize space and breaking capacity. The rated current (In) is 32A. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. It introduces new features like Everlink connectors technology. The product can be installed on a DIN rail or a mounting plate. It embeds new spring type auxiliaries externally visible. This circuit breaker is equipped with a thermal-magnetic trip unit. The dimensions are 108mm (W) x 137mm (H) x 80mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications. ComPacT NSXm is part of the global Schneider Electric Environmental Program.
