СКУ: LC3D80P7A64

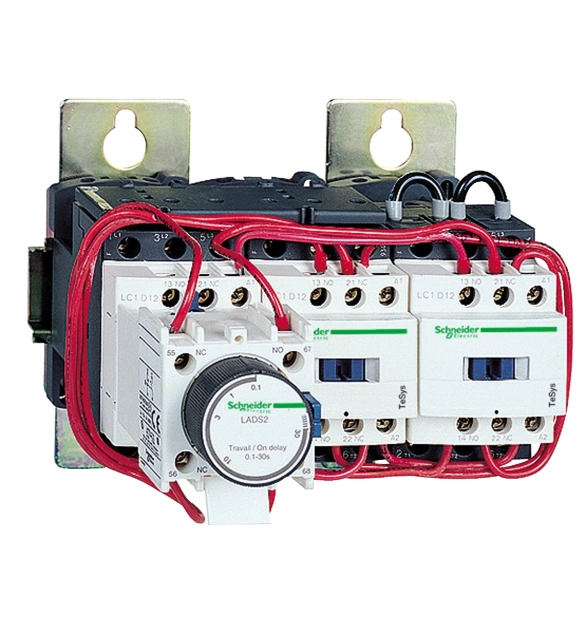

TeSys D - "Звезда-триъгълник" - 3 x 3P (3 NO) - 80 A - 230 V AC бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000460
-
Rail mounting possible
FALSE
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Degree of protection (NEMA)
EV000154
-
Rated control supply voltage Us at AC 50HZ
230
-
Rated control supply voltage Us at AC 60HZ
230
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-3, 400 V
80
-
Function
EV003959
-
Rated operation power at AC-3, 400 V
75
-
Number of normally closed contacts as main contact
TeSys Deca pre-assembled star-delta starter, for motor control applications up to 75kW@400V in delta connection. It is mounted on plate without isolating device, composed of 3 contactors and 1 time delay auxiliary block. It is provided with a 230V 50/60Hz AC coil, and mechanical interlock, connection by screw clamp terminals. Maximum operating rate is 30 starts/hour and maximum starting time is 30 sec. Dimension is 311mm x 143mm x 183mm (WxHxD).
