СКУ: LRE357
Термично реле TVS 37...50A, клас 10A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Mounting method
EV003970
-
Reset function input
FALSE
-
Max. rated operation voltage Ue
690
-
Release class
EV011240
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Reset function push-button
TRUE
-
Reset function automatic
FALSE
-
Adjustable current range
30
-
Number of auxiliary contacts as change-over contact

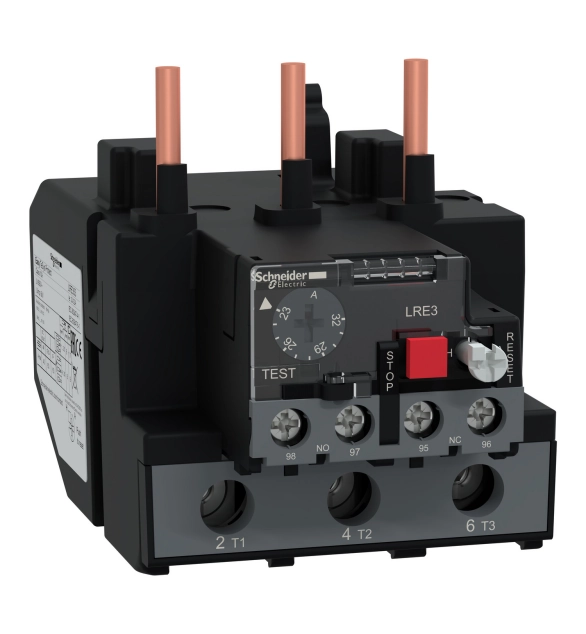

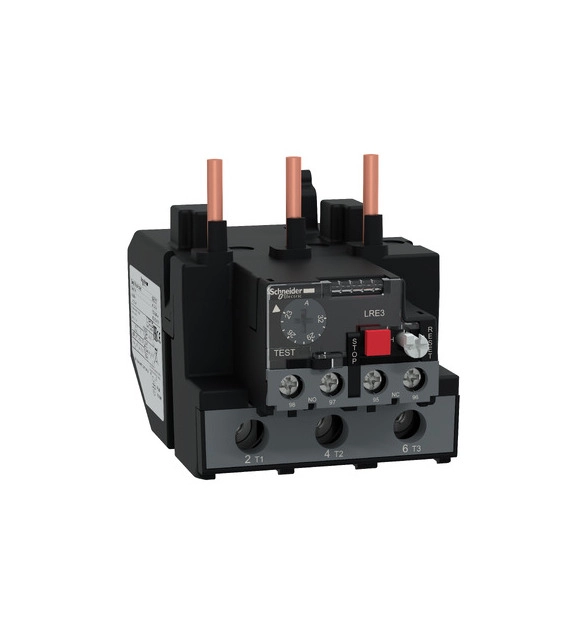

The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers. Its thermal setting range is 37-50A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on Easy TeSys Control contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 22kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
