СКУ: NSYDLCR48

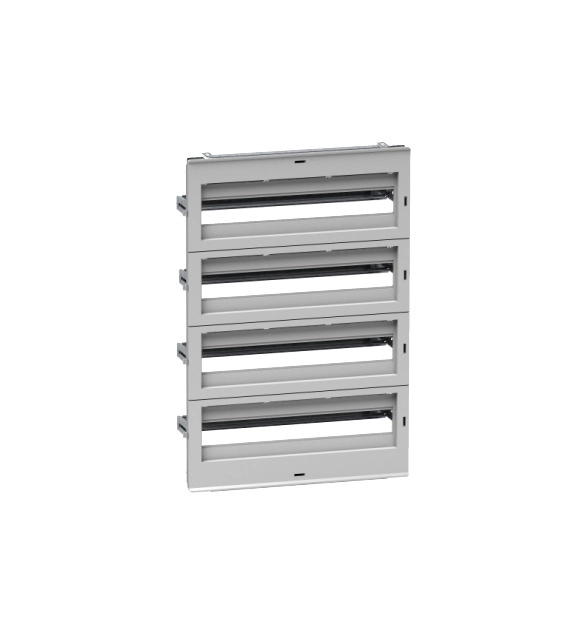

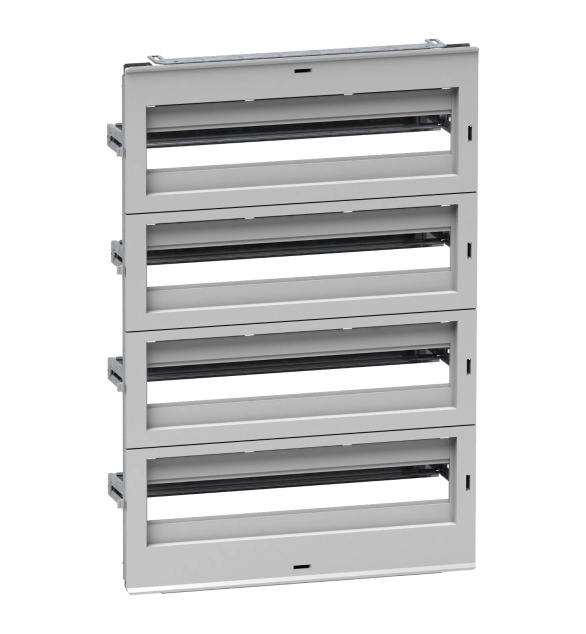

Модулна рамка 48M 500х400х150
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Type of cover
EV009916
-
With cover
TRUE
-
Depth
101.5
-
With N-PE clamp
TRUE
-
Height
953
-
Number of DIN-rails
6
-
Width
755
-
Number of modular spacings per DIN-rail
39
DLA chassis for PanelSeT S3D, PanelSeT CRN, PanelSeT S3X and PanelSeT PLM enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 260mm The height is 380mm Number of 18mm modules is 24 (1 module = 2 steps = 18 mm) Number of horizontal rows is 2 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing insulating and chassis structure and rails are made from steel The front has a grey (RAL 7035) color Number of cut-outs is 2 The kit is made up of 1 chassis structure, 2 finish covers, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² and 2 front panels with 35mm DIN rails
