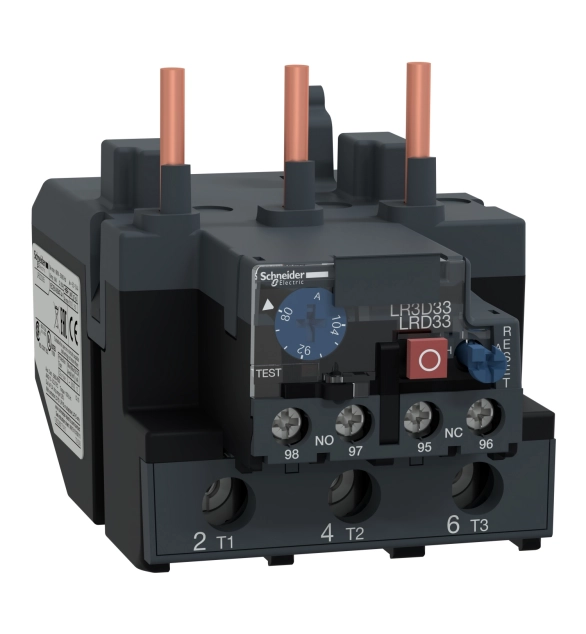

СКУ: LR3D3365
Термични защити модел D 80-104
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Mounting method
EV003970
-
Reset function automatic
TRUE
-
Reset function input
FALSE
-
Max. rated operation voltage Ue
690
-
Release class
EV011240
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Reset function push-button
TRUE
-
Number of auxiliary contacts as change-over contact
-
Adjustable current range
10
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW at 400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
