СКУ: A9C23712

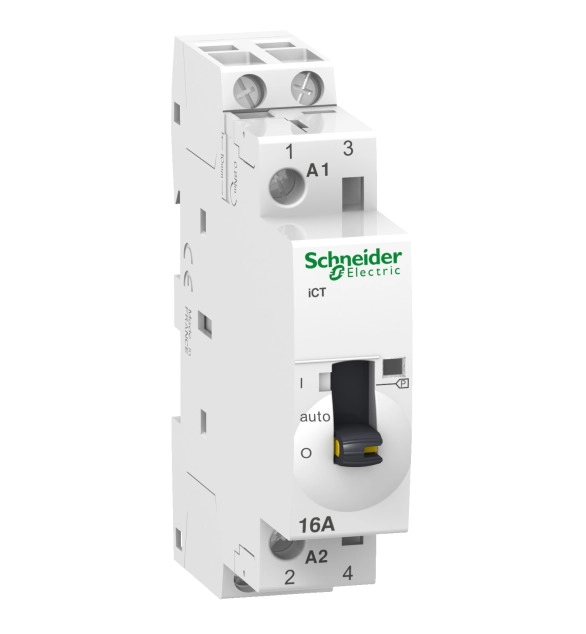

Контактор 16A 2NO 230...240V 50Hz MO контакт
-
Brand
Schneider Electric
-
Width in number of modular spacings
1
-
Mounting method
EV000242
-
Number of contacts as normally open contact
2
-
Frequency control voltage 1
50
-
Voltage type of supply voltage
EV000460
-
Type of control voltage 1
EV000460
-
Rated switch current
16
-
Suitable for manual operation
TRUE
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Supply voltage
24
-
Built-in depth
43.5
-
Function
EV005729
-
Type of control voltage 2
EV000461
-
Control voltage 1
24
-
Max. load fluorescent lamp (parallel compensated)
900
-
Max. incandescent lamp load
1600
-
Max. load fluorescent lamp
1300
-
Max. load fluorescent lamp (Duo circuit)
2000
-
Max. switching current (cos phi = 0.6)
16
-
Control voltage 2
12
This Acti9 iCT is a modular contactor. It is a 3P remote and manual control device with 3 normally open contacts. The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 36mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
