СКУ: LRD33656

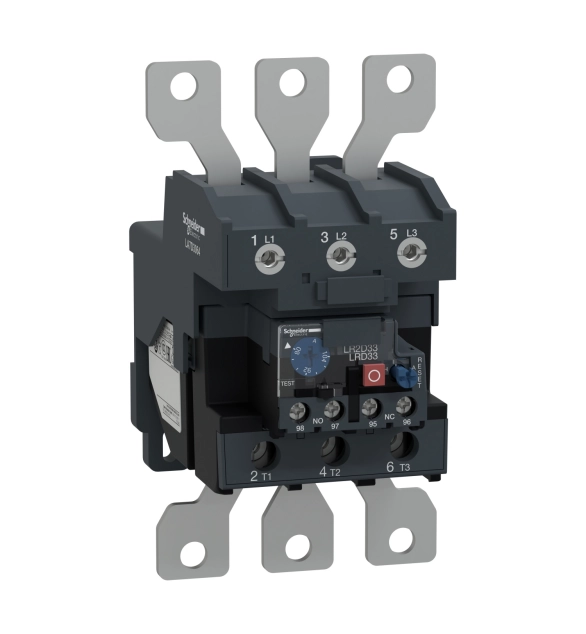

Термични релета за претоварване TeSys Deca, 80...104A, клас 10A, скоби
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Reset function automatic
TRUE
-
Reset function input
FALSE
-
Release class
EV011240
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Reset function push-button
TRUE
-
Mounting method
EV003969
-
Max. rated operation voltage Ue
1000
-
Adjustable current range
80
-
Number of auxiliary contacts as change-over contact
TeSys Deca LRD thermal overload relay, 104A/1000V, thermal setting range 80-104A, tripping class 10A, for protection of 3-phase motors 45kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp/ lugs-ring terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX).
