СКУ: RE22R2AMR
Таймер ON Delay RE22R2AMR
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Suitable for front mounting
FALSE
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Height
90
-
Depth
73
-
With semiconductor output
FALSE
-
Function delay on de-energization
FALSE
-
Pluggable on auxiliary contact block
FALSE
-
Clock function, starting with pause, variable
FALSE
-
Clock function, starting with pulse, variable
FALSE
-
Number of outputs, undelayed, change-over contact
1
-
Function floating contact on de-energization
FALSE
-
Function delay-on energization
FALSE
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Function floating contact on energization
FALSE
-
With plug-in socket
FALSE
-
Function star-delta
FALSE
-
Function flashing, starting with pulse, fixed time
FALSE
-
Remote operation possible
FALSE
-
Suitable as remote control
FALSE
-
Function pulse shaping
FALSE
-
Width
22.5
-
Nominal current
8
-
Function flashing, starting with pause, fixed time
TRUE
-
Time range
0.05
-
Number of outputs, delayed, change-over contact
2
-
Number of outputs, delayed, normally open contact
2
-
Number of outputs, delayed, normally closed contact
2
-
Number of outputs, undelayed, normally open contact
1
-
Number of outputs, undelayed, normally closed contact
1
-
Outputs, reversible delayed/undelayed
TRUE

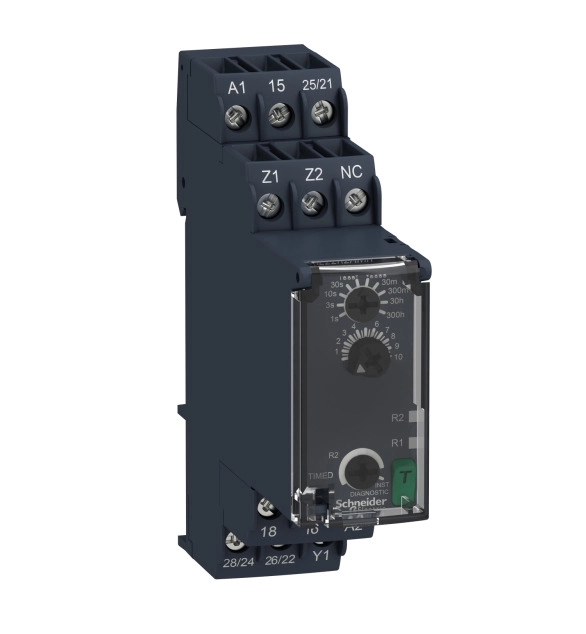

This Harmony RE22 modular dual function timer can be set between 1 seconds and 300 hours. It provides function A and function Aw and it is mountable on DIN rail. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
