СКУ: REXL4TMBD
Таймер MINI PLUG-IN TIMER 4C/O 24VDC
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000461
-
Suitable for front mounting
FALSE
-
Rated control supply voltage Us at DC
24
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
Width
21
-
Type of electric connection
EV000414
-
Height
27
-
Nominal current
5
-
Depth
63
-
With semiconductor output
FALSE
-
Function delay on de-energization
FALSE
-
Pluggable on auxiliary contact block
FALSE
-
Clock function, starting with pause, variable
FALSE
-
Clock function, starting with pulse, variable
FALSE
-
Function floating contact on de-energization
FALSE
-
Function floating contact on energization
FALSE
-
Outputs, reversible delayed/undelayed
FALSE
-
Function star-delta
FALSE
-
Function flashing, starting with pause, fixed time
FALSE
-
Function flashing, starting with pulse, fixed time
FALSE
-
Remote operation possible
FALSE
-
Suitable as remote control
FALSE
-
Time range
0.1
-
Function pulse shaping
FALSE
-
Function delay-on energization
TRUE
-
With plug-in socket
TRUE
-
Number of outputs, delayed, normally open contact
-
Number of outputs, delayed, normally closed contact
-
Number of outputs, undelayed, normally open contact
-
Number of outputs, undelayed, normally closed contact
-
Number of outputs, undelayed, change-over contact
-
Number of outputs, delayed, change-over contact
4
-
Rated control supply voltage Us at AC 50HZ
-
Rated control supply voltage Us at AC 60HZ

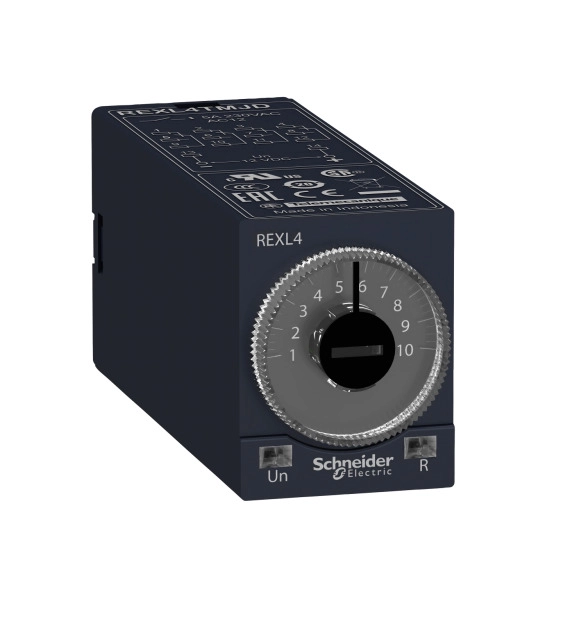

This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V DC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools.
