СКУ: REXL2TMBD

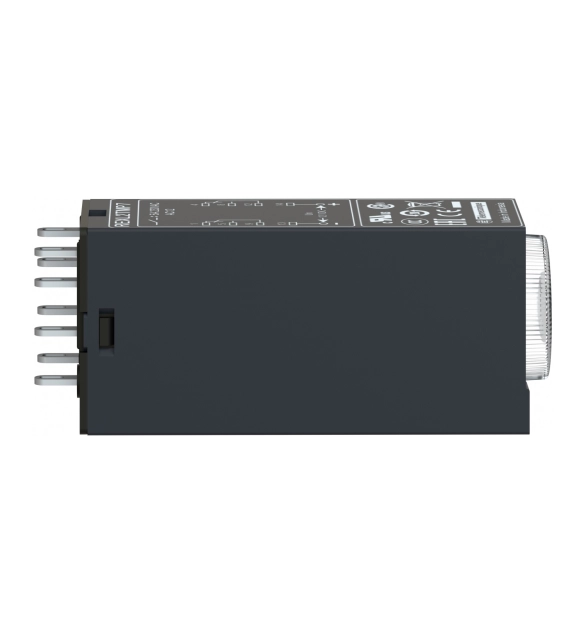

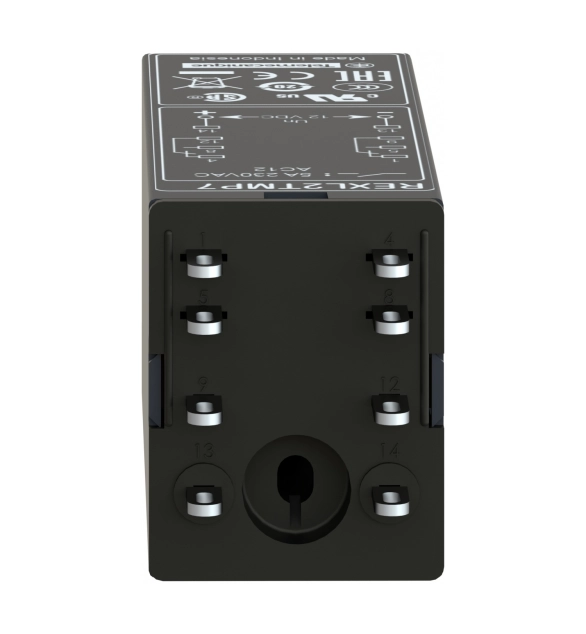

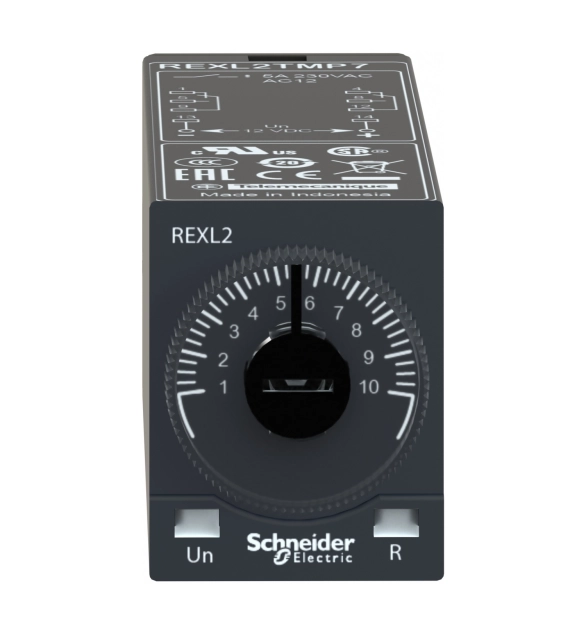

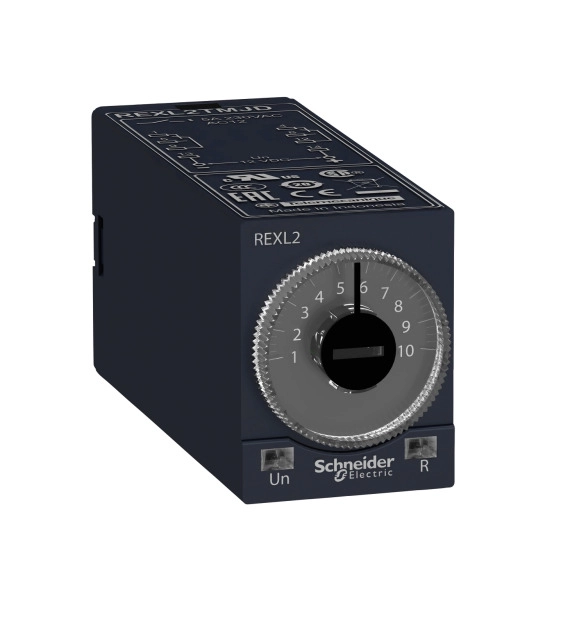

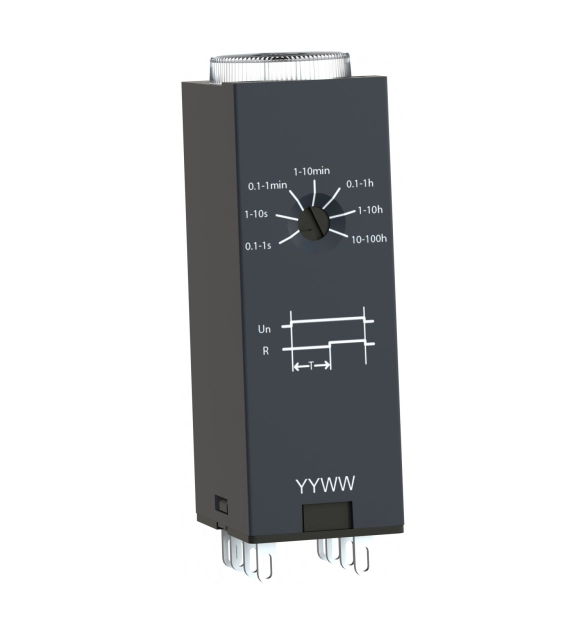

Таймер MINI PLUG-IN TIMER 2C/O 24VDC
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Suitable for front mounting
FALSE
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
24
-
Height
90
-
Depth
73
-
Nominal current
5
-
With semiconductor output
FALSE
-
Pluggable on auxiliary contact block
FALSE
-
Clock function, starting with pause, variable
FALSE
-
Clock function, starting with pulse, variable
FALSE
-
Number of outputs, undelayed, normally open contact
-
Number of outputs, undelayed, normally closed contact
-
Function floating contact on de-energization
FALSE
-
Function delay-on energization
FALSE
-
Suitable for DIN rail (top hat rail) mounting
TRUE
-
Function floating contact on energization
FALSE
-
Outputs, reversible delayed/undelayed
FALSE
-
With plug-in socket
FALSE
-
Function star-delta
FALSE
-
Function flashing, starting with pause, fixed time
FALSE
-
Function flashing, starting with pulse, fixed time
FALSE
-
Remote operation possible
FALSE
-
Suitable as remote control
FALSE
-
Number of outputs, undelayed, change-over contact
-
Function pulse shaping
FALSE
-
Width
22.5
-
Function delay on de-energization
TRUE
-
Time range
0.05
-
Number of outputs, delayed, change-over contact
2
-
Number of outputs, delayed, normally open contact
2
-
Number of outputs, delayed, normally closed contact
2
This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
