СКУ: CCT15234

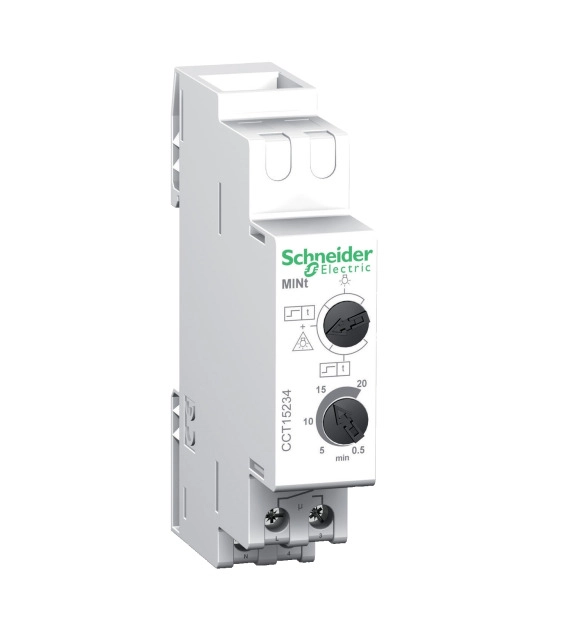

Таймep MINT
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Width in number of modular spacings
1
-
Mounting method
EV000242
-
Frequency control voltage 1
50
-
Max. load fluorescent lamp (parallel compensated)
1300
-
Voltage type of supply voltage
EV000460
-
Max. incandescent lamp load
2300
-
Max. load fluorescent lamp
2300
-
Max. load fluorescent lamp (Duo circuit)
2300
-
Control voltage 1
230
-
Type of control voltage 1
EV000460
-
Push button glow-lamp current
50
-
Rated switch current
16
-
Supply voltage
230
-
Wiring system
EV005718
-
Max. switching current (cos phi = 0.6)
10
-
Current surge function selectable
FALSE
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Built-in depth
66
-
Release-delay
0.5
-
Pre-warning of switching-off
EV005721
-
Function
EV005714
-
Repetitive
EV005725
Discover the programmable Acti9 silent electronic timer, enabling precise contact closure followed by timed opening for seamless automation. Features an integrated pre-switch-off warning via lamplight flickering, enhancing operational safety and user awareness in automated lighting environments. An adjustable time delay from 0.5 to 20 minutes for flexible control. The rated operational voltage is 230VAC +10% to 15% with an operating frequency of 50Hz to 60Hz. Additionally, the maximum switching current is 16A at 230VAC. The device is dedicated to small commercial buildings. It can be mounted on a DIN rail, and its width is 2 pitches of 9mm. The product colour is white (RAL 9003). It has an IP20B degree of protection on its terminals. The device operates in temperatures between -25°C and 50°C. Acti9 MIN range allows to limit the lighting operations to the period strictly necessary by automatically opening or closing a light in adjustable time delay. Allowing a connection of several control push-buttons, they are ideal for controlling lighting of stairways, hallways of buildings, garages or toilet ventilation for instance.
