СКУ: CCT15233

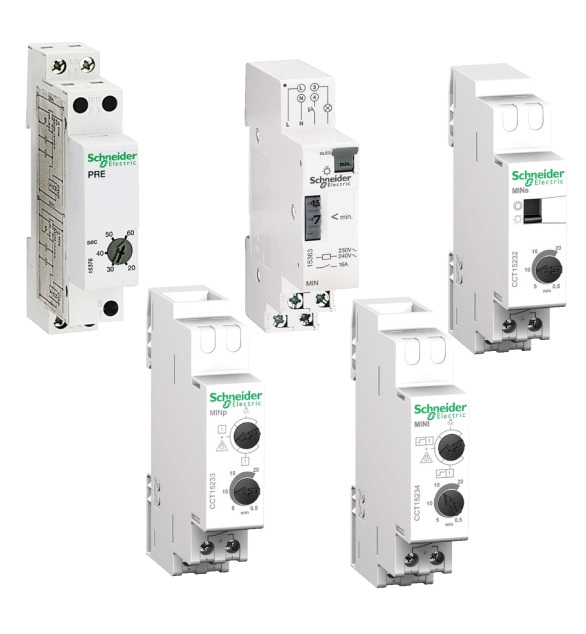

Таймep MINP
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Width in number of modular spacings
1
-
Mounting method
EV000242
-
Frequency control voltage 1
50
-
Voltage type of supply voltage
EV000460
-
Control voltage 1
230
-
Type of control voltage 1
EV000460
-
Rated switch current
16
-
Supply voltage
230
-
Wiring system
EV005718
-
Repetitive
EV000494
-
Current surge function selectable
FALSE
-
Max. load fluorescent lamp (parallel compensated)
1200
-
Max. load fluorescent lamp
3600
-
Max. switching current (cos phi = 0.6)
16
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Built-in depth
66
-
Release-delay
0.5
-
Frequency control voltage 2
50
-
Max. incandescent lamp load
3600
-
Max. load fluorescent lamp (Duo circuit)
3600
-
Pre-warning of switching-off
EV005721
-
Function
EV005714
The Acti 9 MINp timer allows closing and then opening of a contact in a determined time. It also provides warning that the lighting is about to be switched off by flickering of the lamplight (switch-off warning). The Time delay is adjustable from 0.5 to 20 min. Functions: Three operating modes triggered by switch on front face. Timer mode with switch-off warning function built into the device. The lamp blinks 40 and 30 s before the end of the time delay. Timer mode mode without switch-off warning function. Permanent mode with constant lighting. Voltage rating (Ue): 230 V AC, 50/60 Hz. Consumption <6 VA. Operating temperature -25°C to +50°C. Width (9 mm modules): 2. Insulation class: Class II. Degree of protection: IP20B. Output contact rating 250 V: 16 A cos Phi 1. Time delays (On and Off): Adjustable from 0.5 to 20 min. Number of channels: 1.
