СКУ: NSYSM20840P

Табло за стоящ монтаж В/Ш/Д 2000х00х400 с монт. плоча

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Degree of protection (IP)
    EV006420
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Depth
    400
  • Material quality
    EV000154
  • Degree of protection (NEMA)
    EV022254
  • Width
    800
  • Connectable
    FALSE
  • Height
    2000
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall mounting
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Pole fastening
    FALSE
  • Impact strength
    EV008784
  • Number of locks
    1
  • Max. permissible load of the enclosure according to IEC 62208
    4900
  • Max. permissible load of the door(s) according to IEC 62208
    588
  • Max. permissible load of the mounting plate according to IEC 62208
    3914

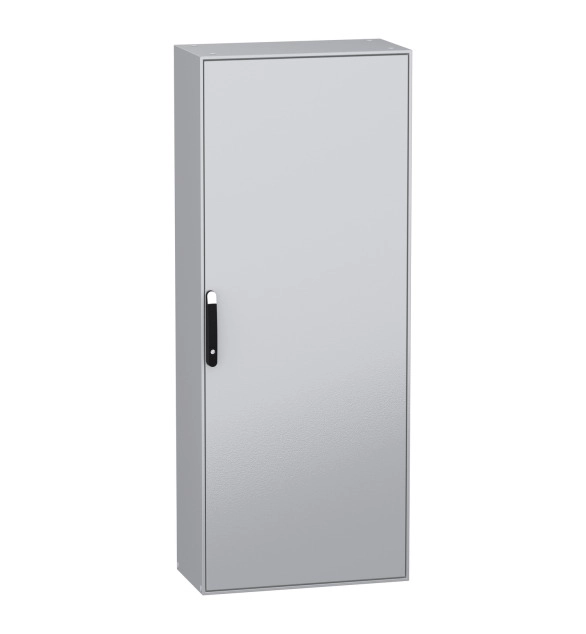

PanelSeT SM is a multi-purpose low-carbon steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 2000mm, 800mm and 400mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, one plain door, one cable gland plate with one entry, one plain mounting plate and four mounting plate brackets. The door can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The door, the mounting plate and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating. It conforms to IEC 62208, IK10 (IEC62262) and IP55 (IEC60529) It has a single entry point for cables The enclosure is accessible from the front
