СКУ: C104MG025

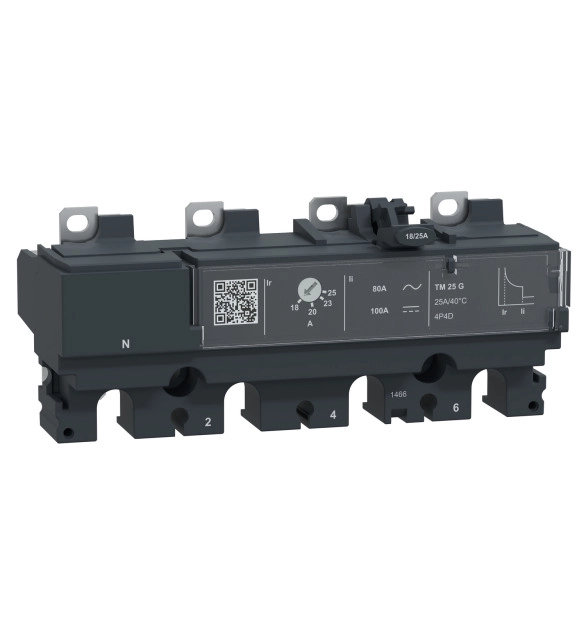

Изключвателно устройство NSX100 AC 4P4D 25A TMG
-
Brand
Schneider Electric
-
Number of poles
4
-
Rated permanent current Iu
100
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
With ground fault protection function
TRUE
-
Short-circuit release function
EV003977
-
Overload release current setting
40
-
End value adjustment range undelayed short-circuit release
1500
-
Initial value of the undelayed short-circuit release - setting range
150
This MicroLogic 2.2 G is a 3 poles 3d electronic trip unit used on ComPacT NSX 160/250 circuit breakers. This 160A rating electronic trip unit is an optimum choice for generator protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 G indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
