СКУ: NSYCRN43200T

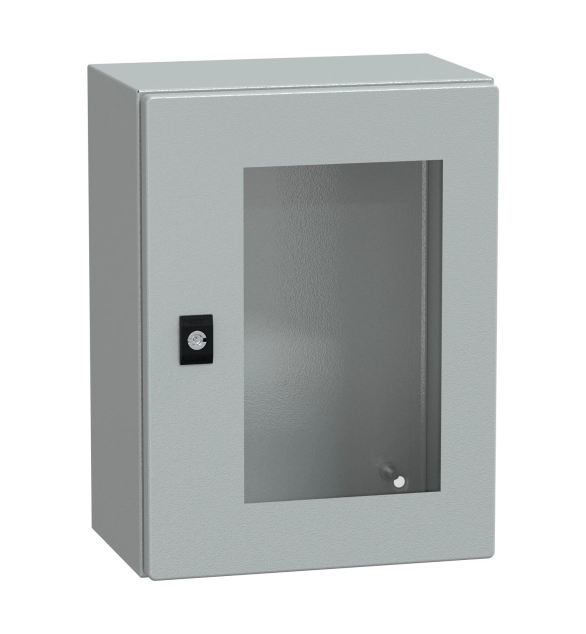

Табло Spacial CRN с прозрачна врата без монтажна плоча, H400xW300xD200 IP66 IK08 RAL7035..

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Depth
    200
  • Degree of protection (NEMA)
    EV000154
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • With glazed door
    TRUE
  • Degree of protection (IP)
    EV006422
  • Height
    400
  • Width
    300
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV006814
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    300
  • Max. permissible load of the door(s) according to IEC 62208
  • Max. permissible load of the enclosure according to IEC 62208
    800

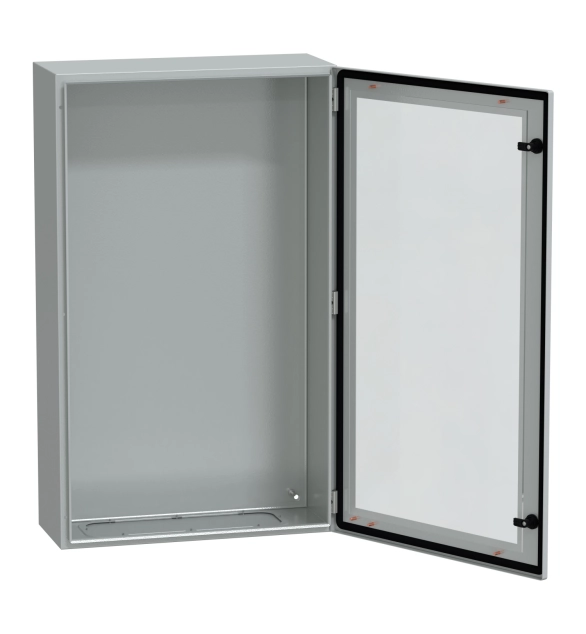

PanelSeT CRN steel wall-mounting enclosure is designed for multi-purpose applications It is designed for use in harsh environments, withstanding high impact due to its IK08 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 400mm, 300mm, and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a glazed door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 5,758kg The sides are made from a single folded section, and the back is welded with a double profile forming a protected sealed area The product is certified by UL, cUL, and DNV-GL
