СКУ: NSYS3X4420
Табло S3X 400X400X200 неръжд.304L
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Degree of protection (IP)
EV006420
-
Depth
200
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Colour
EV000294
-
Surface finishing
EV000154
-
Degree of protection (NEMA)
EV007990
-
Width
400
-
Height
400
-
Material
EV000166
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Number of locks
1
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50
-
Max. permissible load of the enclosure according to IEC 62208
50
-
Material quality
EV006909

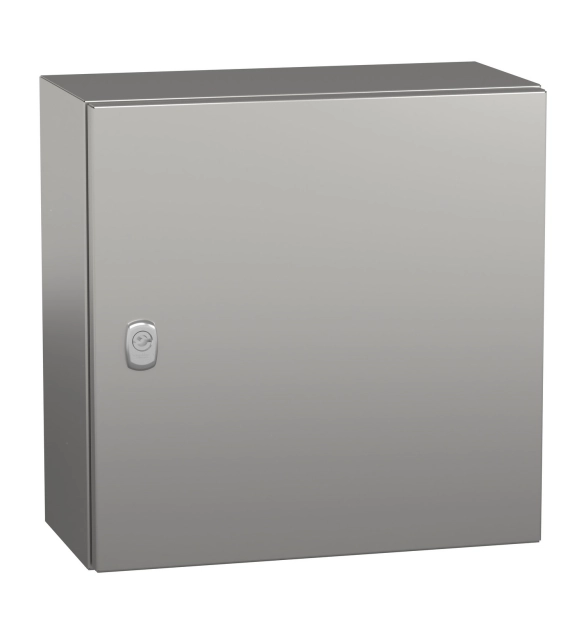

PanelSet S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 400mm, 400mm and 200mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, a plain door and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a 3mm double-bar lock insert The door can be removed for maintenance purposes The net weight of the enclosure is 6,698kg
