СКУ: NSYS3D10630T
Табло S3D с пв 1000х600х300 без мп
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
Width
600
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
With glazed door
TRUE
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Height
1000
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Depth
300
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV006814
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250

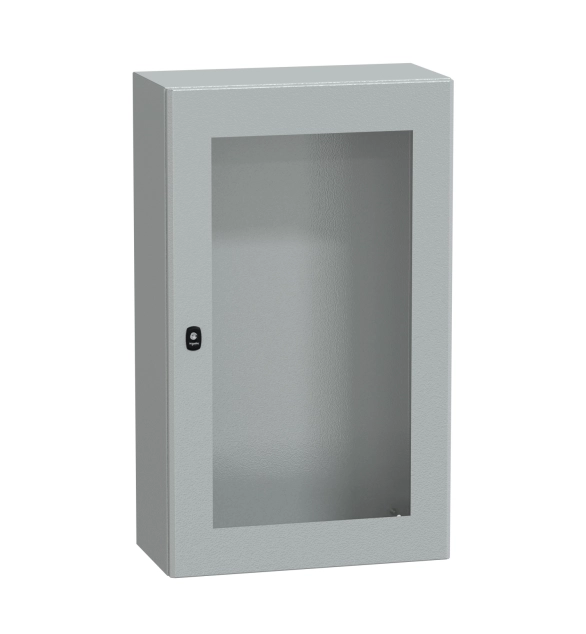

PanelSeT S3D steel wall-mounting enclosure is designed for multi-purpose applications and is suitable for use in harsh environments It has a NEMA 4X/13 rating and an IP66 rating (IEC60529) for high resistance to dust and water This enclosure has a nominal height, width and depth of 1000mm, 600mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a glazed door, a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 29kg It is certified by DNV, LR, GL, cUL, BV and UL The variant particularity includes a gutter-shaped front rail double sheet thickness and a single piece body
