СКУ: NSYS3D12630
Табло S3D с 2врати 1200X600X300 без МП
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
Width
600
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Height
1200
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Depth
300
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50

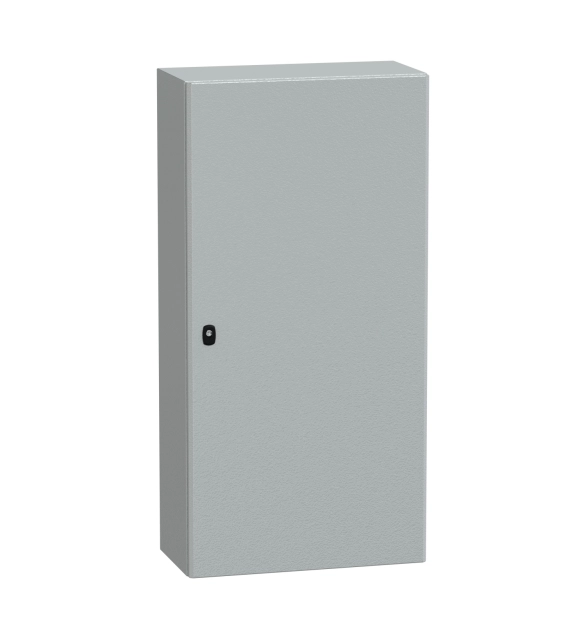

PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It can withstand high impact due to its IK10 (IEC62262) rating and has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 1200mm, 600mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one cable gland plate, one plain door and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 34,5kg It is certified by GL, UL, LR, BV, cUL and DNV standards and is compliant with the NEMA 4X/13 rating The enclosure also has a gutter-shaped front rail double sheet thickness and a single piece body for added strength and durability
