СКУ: MIP12104

Мод.табло ОМ MINIPRAGMA 1R 4M непр.вр. 4м./13321/

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • Extension possible
    FALSE
  • Width in number of modular spacings
    4
  • RAL-number
    9003
  • Transparent cover/door
    FALSE
  • Signal passing door
    FALSE
  • Colour
    EV000202
  • Material housing
    EV000139
  • Number of rows
    1
  • DIN-rail
    TRUE
  • Mounting method
    EV000384
  • With lock
    FALSE
  • EMC-version
    FALSE
  • Degree of protection (IP)
    EV006415
  • Type of cover
    EV004216
  • Type of closure
    EV000154
  • Cover model
    EV000116
  • Earthing terminal block
    TRUE
  • Neutral terminal block
    TRUE
  • Depth
    95
  • Width
    124
  • Height
    198
  • Internal depth
    74

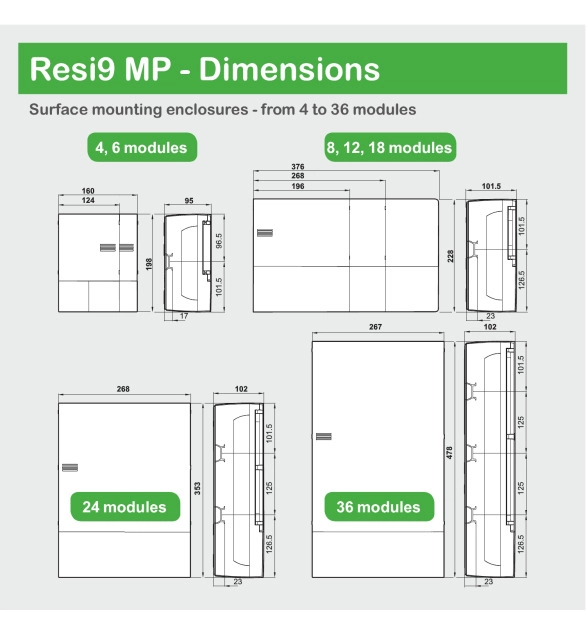

This Resi9 MP enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 1 row of 4 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The neutral one provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The In rated current is up to 50A. It complies with the IEC 60670-1 and -24 standards. The total dimensions are (W) 124mm x (H) 198mm x (D) 95mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the door, the back part and the front face. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.
