СКУ: LRD3359

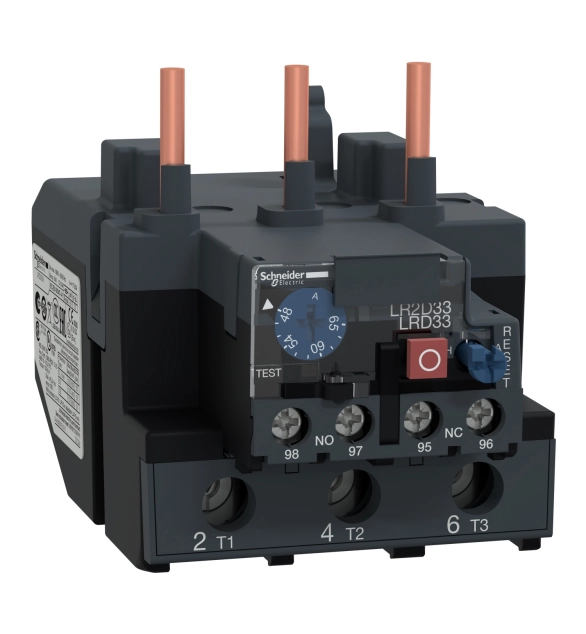

SCHNEIDER ELECTRIC Thermal overload relays, 48..65A , class 10A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    5.5
  • Degree of protection (IP)
    EV006405
  • Voltage type for actuating
    EV000460
  • Suitable for emergency stop
    FALSE
  • Rated control supply voltage Us at AC 50HZ
    24
  • Rated control supply voltage Us at AC 60HZ
    24
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    10000
  • Rated conditional short-circuit current, type 2, 230 V
    50000
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    4000
  • With transformer
    FALSE
  • Ambient temperature, upper operating limit
    70
  • External reset possible
    FALSE
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Rated conditional short-circuit current, type 2, 400 V
    50000
  • Number of command positions
    3
  • Width
    45
  • Coordination class according to IEC 60947-4-3
    EV006627
  • Depth
    126
  • Rail mounting possible
    TRUE
  • Supporting protocol for other bus systems
    FALSE
  • With fuse
    FALSE
  • With short-circuit release
    TRUE
  • Rated operation current Ie
    12
  • Rated operation current at AC-3, 400 V
    12
  • Rated operation power at AC-3, 230 V, 3-phase
    3
  • Rated power, 575 V, 60 Hz, 3-phase
    5.5
  • Rated power, 460 V, 60 Hz, 3-phase
    5.5
  • Number of indicator lights
  • Height
    224
  • Type of motor starter
    EV004002

TeSys LRD thermal overload relay, 32A/690V, thermal setting range 23-32A, tripping class 20, for protection of 3-phase motors 15kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
