СКУ: NSYS3D6630P
Табло S3D 600х600х300 с мп
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
With mounting plate
TRUE
-
Surface finishing
EV008895
-
Material
EV000179
-
Depth
200
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Width
500
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Height
500
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50

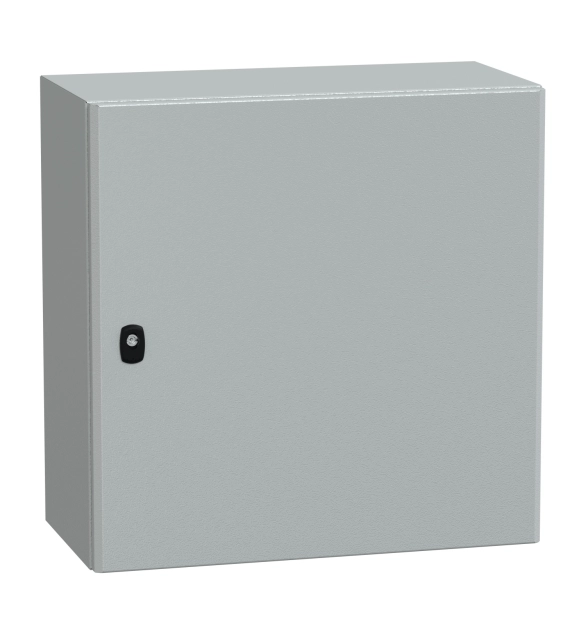

PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It can withstand high impact due to its IK10 (IEC62262) rating and has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 500mm, 500mm and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, a plain door with a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The mounting plate is plain and can be fixed with a fixing element The net weight of the enclosure is 13kg It is certified with UL, GL, cUL, DNV, LR and BV It also meets the standards of IEC 62208 and NEMA 4X/13
