Модул. 2DO 100-240VAC 1.0 A, кодиран, 3 кабела | Spark & Co
  • 3D
|

СКУ: TM5SDO2S

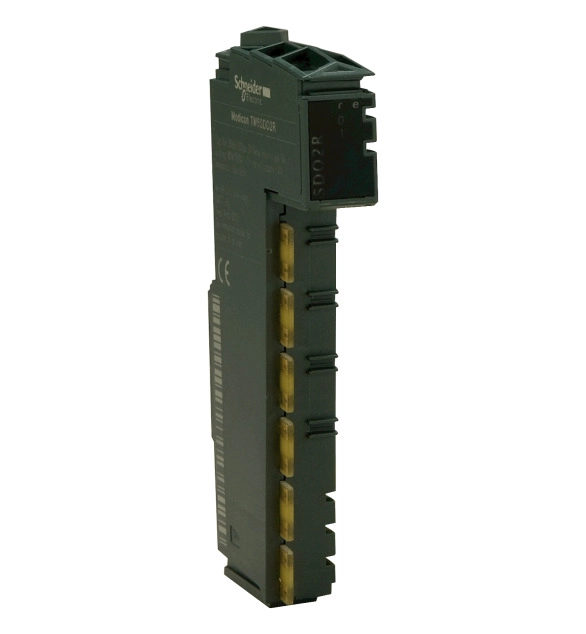

Модул. 2DO 100-240VAC 1.0 A, кодиран, 3 кабела

  • Brand
    Schneider Electric
  • Depth
    60
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Voltage type of supply voltage
    EV000461
  • Appendant operation agent (Ex ia)
    FALSE
  • Appendant operation agent (Ex ib)
    FALSE
  • Suitable for safety functions
    FALSE
  • Supply voltage DC
    24
  • Type of electric connection
    EV000154
  • Digital inputs configurable
    FALSE
  • Explosion safety category for dust
    EV000154
  • Explosion safety category for gas
    EV000154
  • Type of digital output
    EV000154
  • Width
    20
  • Short-circuit protection, outputs available
    FALSE
  • Digital outputs configurable
    FALSE
  • Height
    104
  • Type of output voltage
    EV000460
  • Number of digital outputs
    2
  • Permitted voltage at output
    100
  • Number of digital inputs
  • Output current
    1
  • Time delay at signal exchange
    30

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete output module provides 2 discrete outputs with relay discrete output. Its output voltage limits are 100 to 240V AC, its nominal output voltage is 1A. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. It is equipped with NO/NC contact. It is an IP20 rated product. Its housing colour is black.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
