СКУ: A9S70780

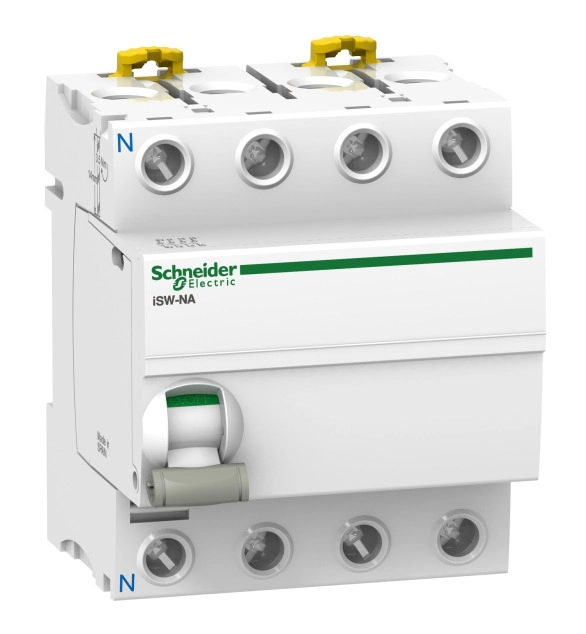

switch-disconnector iSW-NA - 3P + N - 80 A
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
4
-
Number of poles
4
-
Rated current
80
-
Rated voltage
415
-
Voltage type
EV000460
-
With signal lamp
FALSE
-
Imprint/indication
EV000494
-
Number of contacts as normally open contact
4
-
Colour calotte
EV000202
-
Forced segregation (according to DIN VDE 0113)
TRUE
-
Switching function
EV000397
-
Rated switching capacity
5
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Built-in depth
74.5
-
Min. rated voltage
400
-
Short-circuit breaking capacity (Icw)
1.2
This Acti9 iSW-NA is a modular and reliable switch disconnector. it is a 4P, rated current is 80A and operating voltage is 400VAC to 415VAC. Electrical endurance goes up to 10000 cycles, and Mechanical endurance goes up 20000 cycles. The operating temperature is -35°C to +70°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 8. The dimensions are (W) 72mm x (H) 85mm x (D) 74mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
