СКУ: SSD1A360BDC2
SS relay zero scrw 4 32V-48 600V 60A
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000461
-
Modular version
TRUE
-
Operating voltage
48
-
Rated control supply voltage Us at DC
4
-
Rated operation current Ie at AC-53a
-
Rated operation current Ie at AC-51
-
Rated operation current Ie at AC-53b
-
Rated operation current Ie at AC-1
-
Switching at zero-crossing
TRUE
-
Rated operation current Ie at AC-3

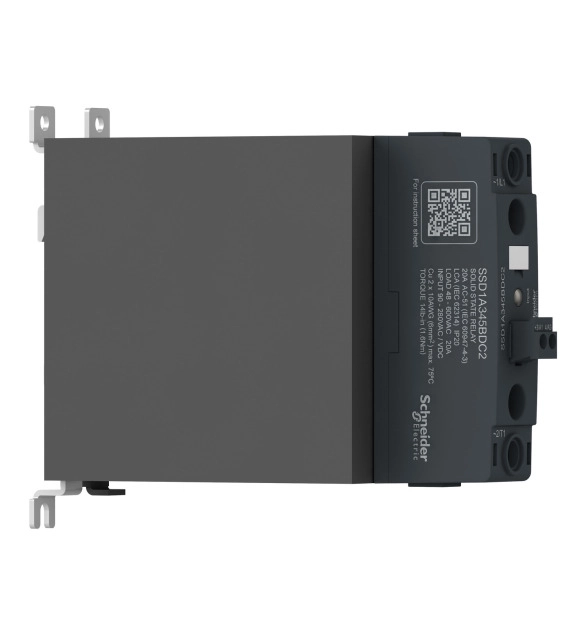

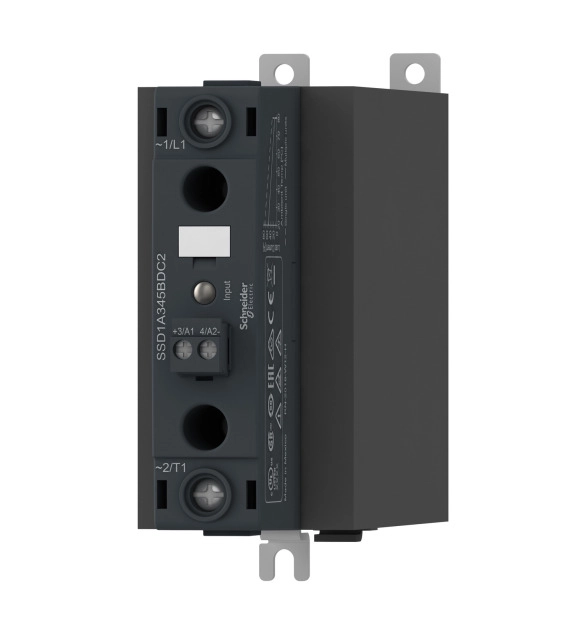

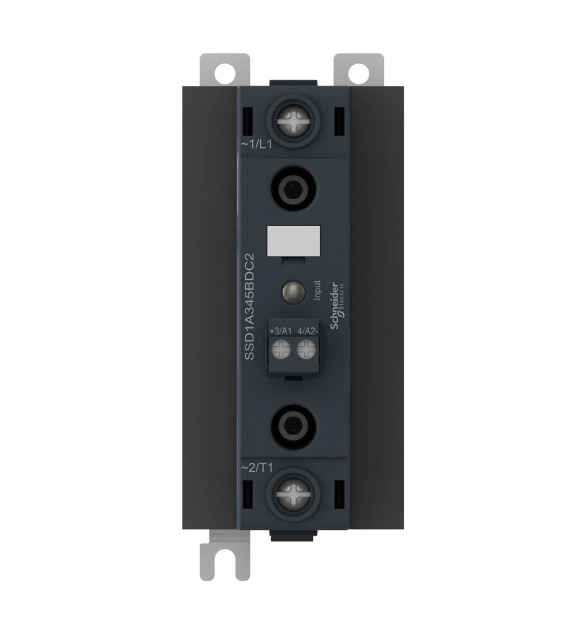

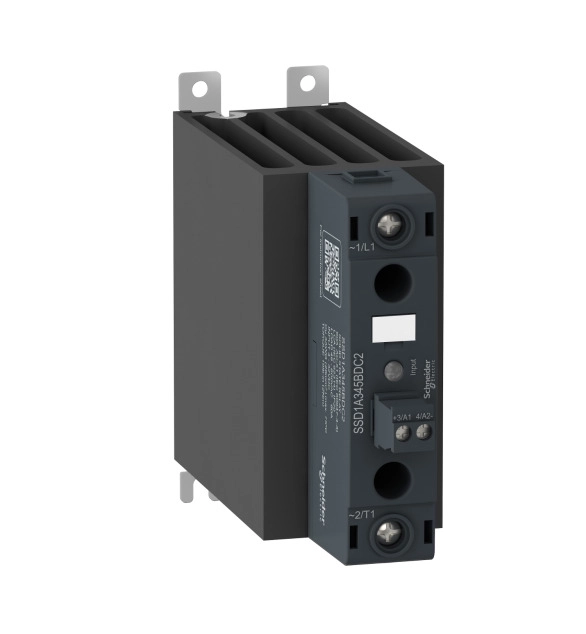

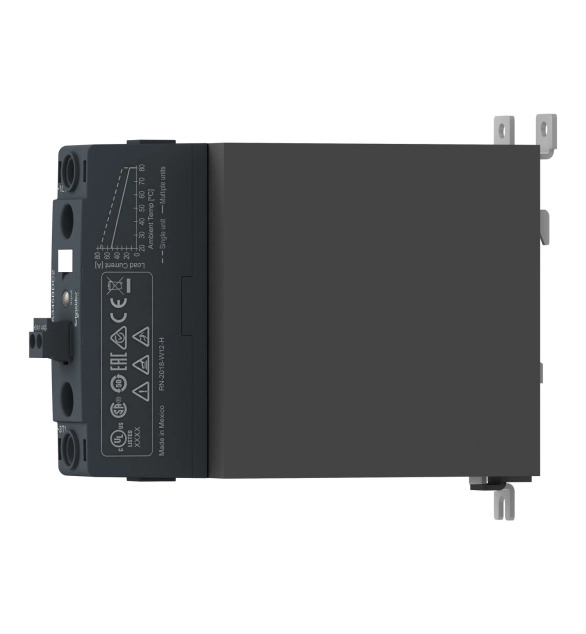

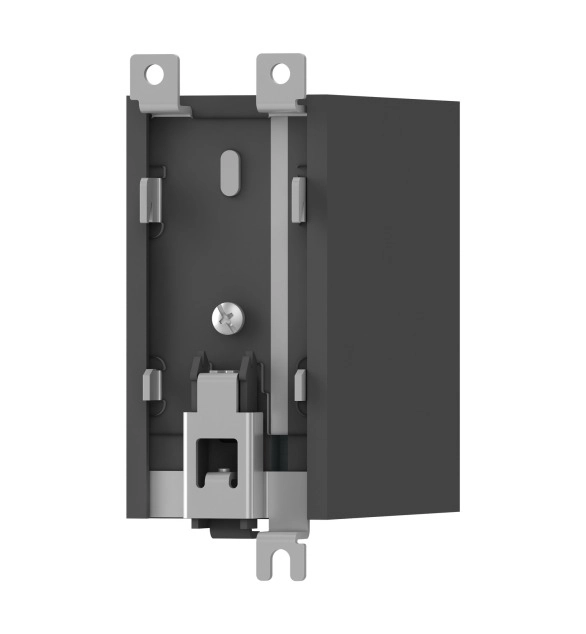

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 20A power rated relay with relay type configuration and DC switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 1Vdc to 150Vdc. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.280Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
