СКУ: 15363
Стълбищен автомат RELAY 230V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Frequency
50
-
Built-in depth
47
-
Rated insulation voltage Ui
690
-
Additional equipment possible
TRUE
-
Rated impulse withstand voltage Uimp
8
-
Rated voltage
400
-
Release characteristic
EV000084
-
Voltage type
EV000509
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Connectable conductor cross section solid-core
1.5
-
Over voltage category
4
-
Ambient temperature during operating
-30
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Width in number of modular spacings
1.5
-
Number of poles (total)
1
-
Number of protected poles
1
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6
-
Rated current
16

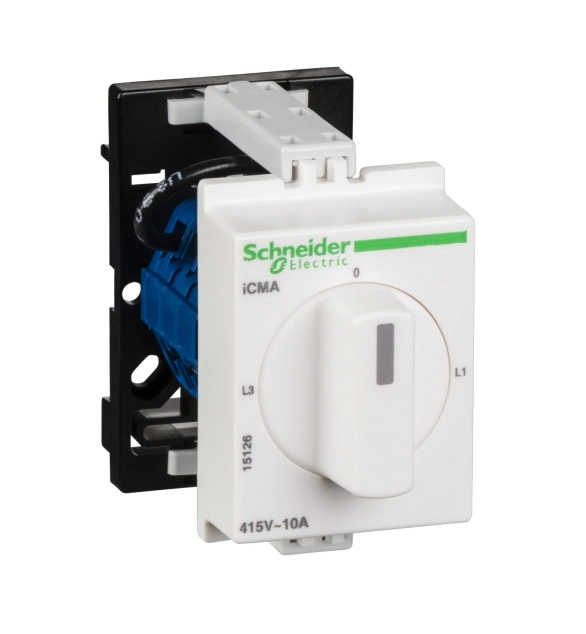

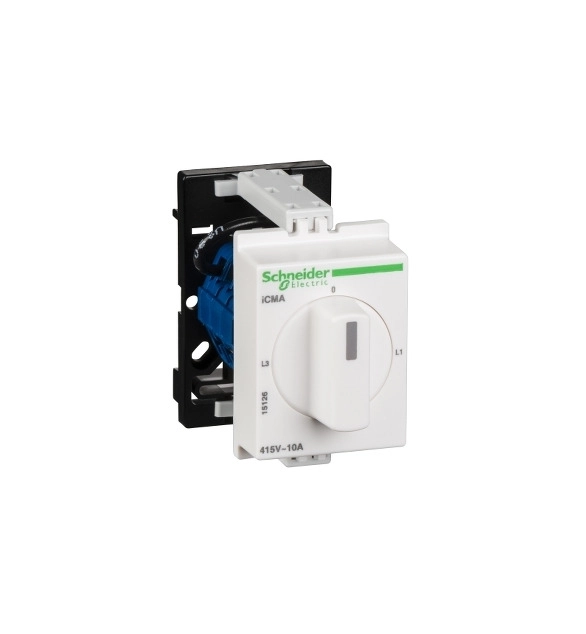

The 4 modules selector switches are designed for DIN rail installation in enclosures or cubicles. The voltmeter selector switch uses a single voltmeter for successive measurement of the voltages (phase-to-phase and phase-to-neutral) of a three-phase circuit. Electrical durability of 1,000,000 operations, and mechanical durability of 2,000,000 operations for an utilization category type AC21A-3. This product is calibrated for 440V AC network. 7 contacts for phase 1, 2, 3, phase 1 to neutral, phase 2 to neutral, phase 3 to neutral or none. Complient to standards IEC/EN 60947-3. Ingress Protection IP66 on front, and IP20 on the back at terminal level. Product dimensions are 60mm in height, 36mm in width and 75mm in depth.
