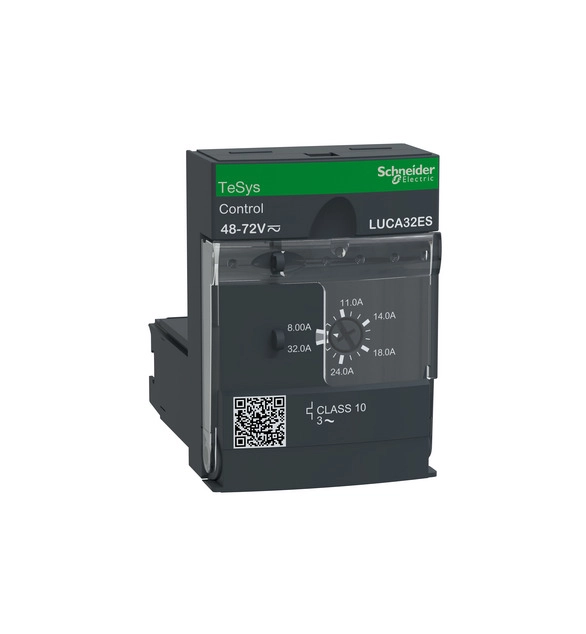

СКУ: LUCA32ES
STD CONTROL 8-32A 48-72V
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
12
-
Voltage type for actuating
EV000509
-
Type of motor protection
EV014005
-
With ground fault protection function
TRUE
-
Short-circuit release function
EV003978
-
Rated control supply voltage Us at AC 50HZ
110
-
Rated control supply voltage Us at AC 60HZ
110
-
Rated control supply voltage Us at DC
110
-
Initial value of the undelayed short-circuit release - setting range
156
-
End value adjustment range undelayed short-circuit release
156
-
Overload release current setting
3
TeSys U standard control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
