СКУ: CCTDD20017

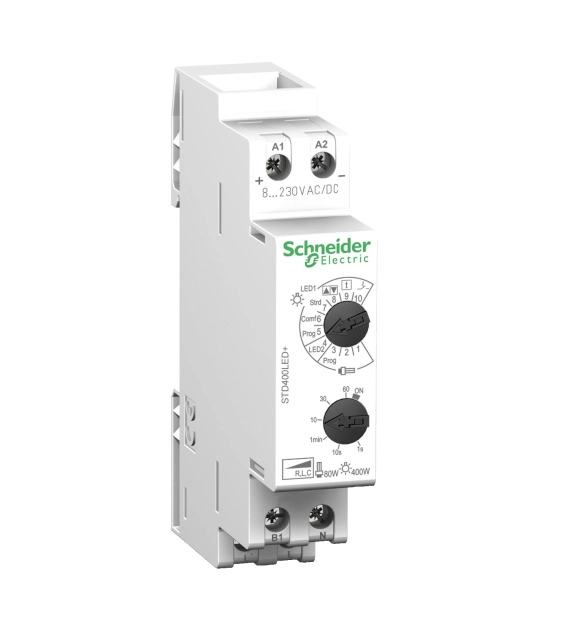

Acti 9 - STD400LED+ DIN универсален димер
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
1
-
Mounting method
EV000242
-
Depth
60
-
Rated voltage
230
-
Rated frequency
50
-
Control voltage 1
230
-
Type of control voltage 1
EV000460
-
Number of channels
1
-
Width
18
-
Weekly program
FALSE
-
Rated current
2
-
Height
85
-
Astro program
FALSE
-
Roller shutter-/sun protection control, number of channels
-
Number of universal dim channels
1
-
Current surge function, number of channels
-
Castor function, number of channels
-
Stair light and forewarn
FALSE
-
Central function OUT
TRUE
-
Group switch
FALSE
-
Presence simulation
FALSE
-
Function
EV000944
-
Panic function
FALSE
-
Dim capacity per channel
400
-
Module expansion up to max. number of channels
-
Number of dimmer functions
4
TeSys K control relay, 4 contacts (4NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC).
