СКУ: SSD1D520BDC1
SS relay zero scrw 4 32V-1 150V 20A
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000461
-
Modular version
TRUE
-
Operating voltage
48
-
Rated control supply voltage Us at DC
4
-
Rated operation current Ie at AC-53a
-
Rated operation current Ie at AC-51
-
Rated operation current Ie at AC-53b
-
Rated operation current Ie at AC-1
-
Switching at zero-crossing
TRUE
-
Rated operation current Ie at AC-3

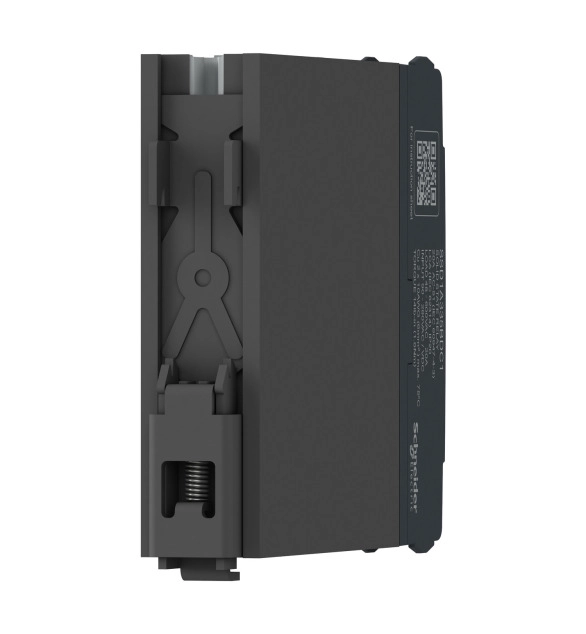

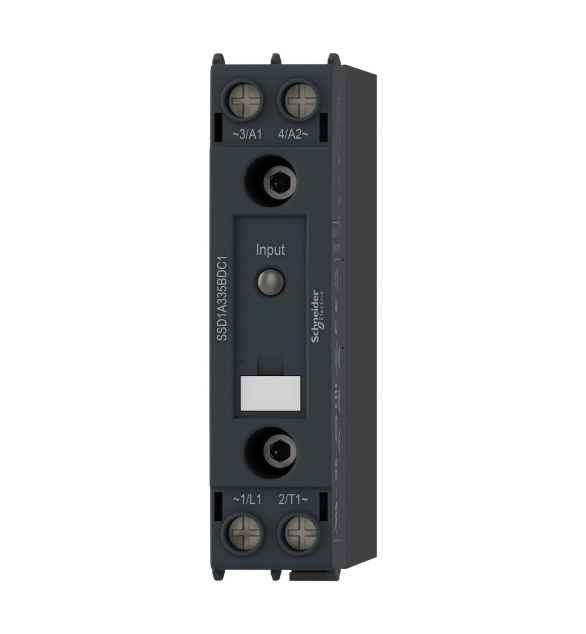

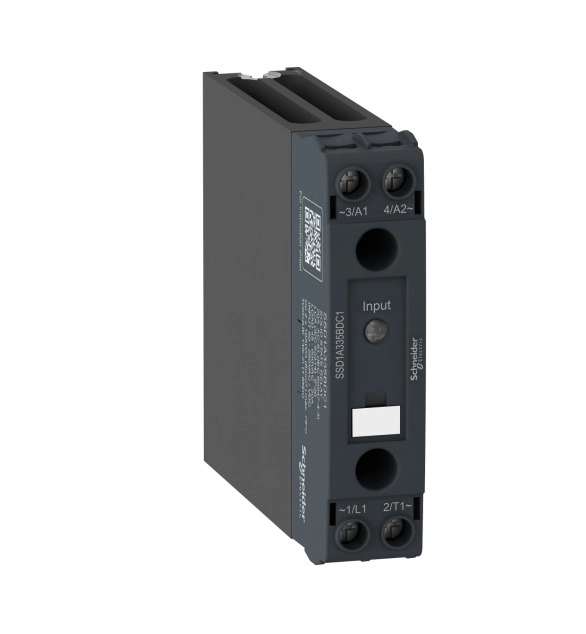

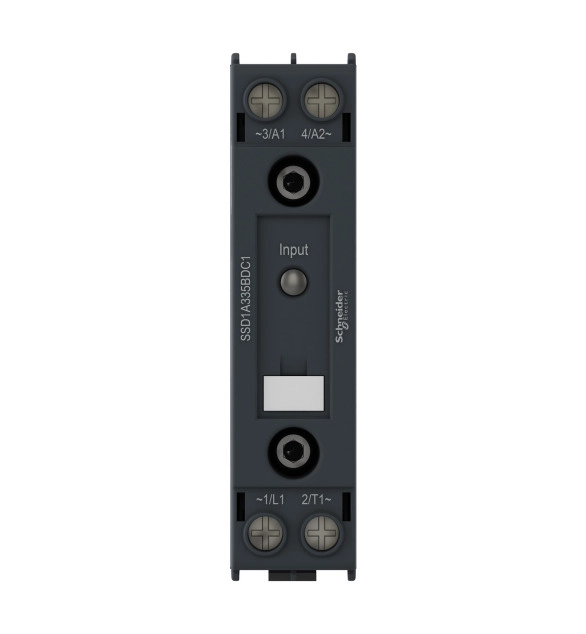

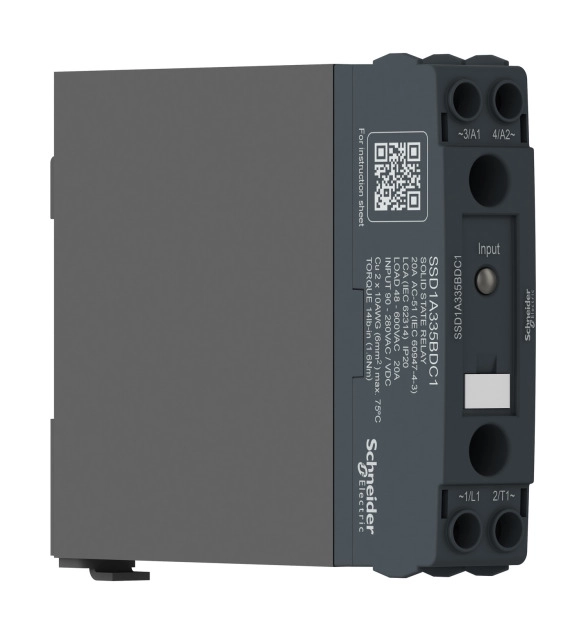

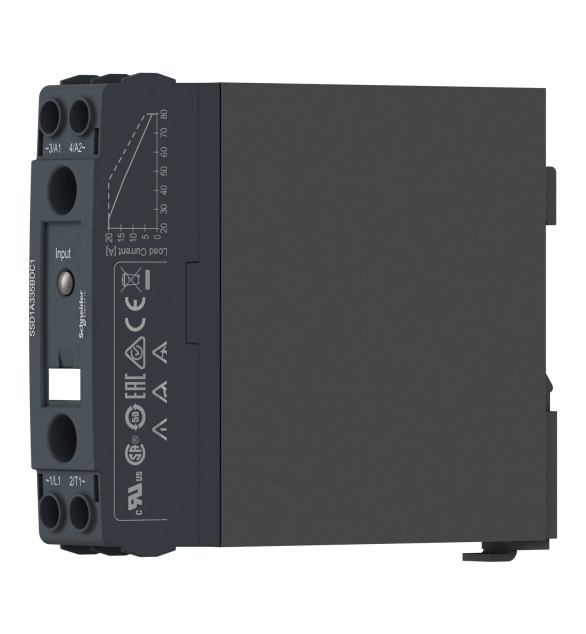

SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 125A, is controlled with a 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. It mounts on metallic panel surface, with an excellent thermal dissipation capability thanks to its factory-installed thermal pad It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. This product conforms to international standard and certifications.
