СКУ: CR1F185M7

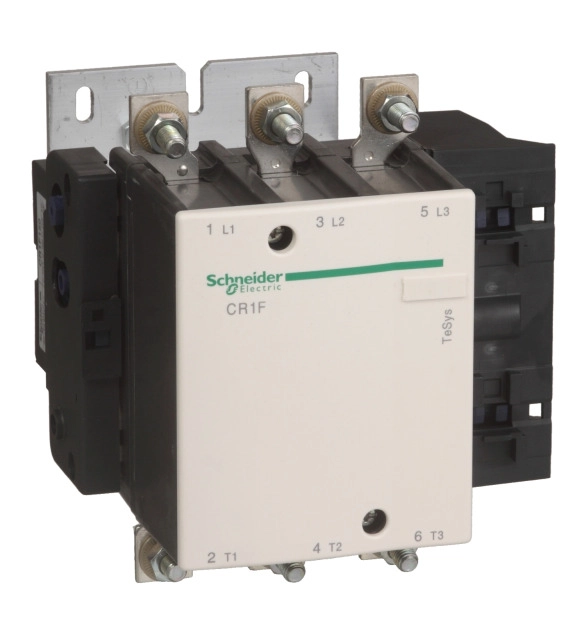

Контактор LATCH CONTACTOR 150A AC3/250A AC1 220VAC
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000509
-
Type of electrical connection of main circuit
EV008864
-
Rated control supply voltage Us at DC
220
-
Modular version
FALSE
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
275
-
Rated operation power at AC-3, 400 V
90
-
Rated operation current Ie at AC-3, 400 V
185
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of normally closed contacts as main contact
-
Rated operation current Ie at AC-4, 400 V
70
-
Rated operation power at AC-4, 400 V
33
TeSys F magnetic latching contactor, 3 poles (3NO), 185A/1000V AC-3, for motor applications up to 90kW@400V. It provides a double coil 220-230V AC (50-400Hz) or DC for latching and unlatching, bolt terminals for bars or cables with lugs. Supply to the coils must be applied by pulsed contacts leading to energy saving and no sensibility to interferences for contactors remaining in closed state for long periods. For operating rates until 120 cycles/hour and environments until 70°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks (instantaneous and time delay auxiliary contacts, suppressor blocks) and connection accessories (to be ordered separately). It conforms to IEC 60158-1 and IEC 60947-4.
