СКУ: XB4BJ21EX

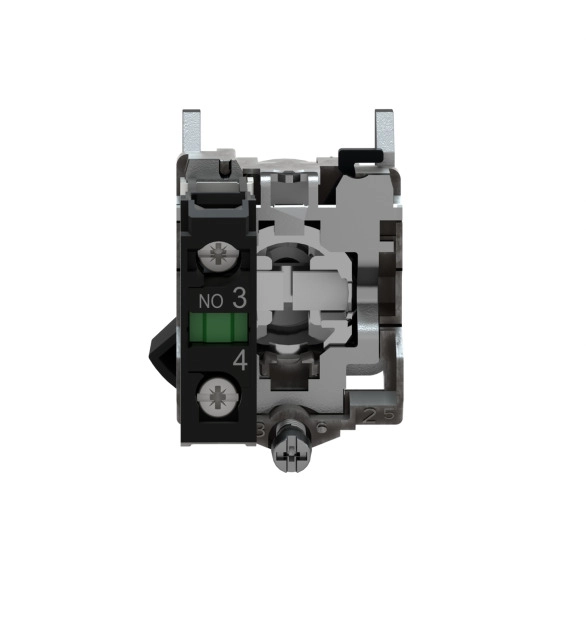

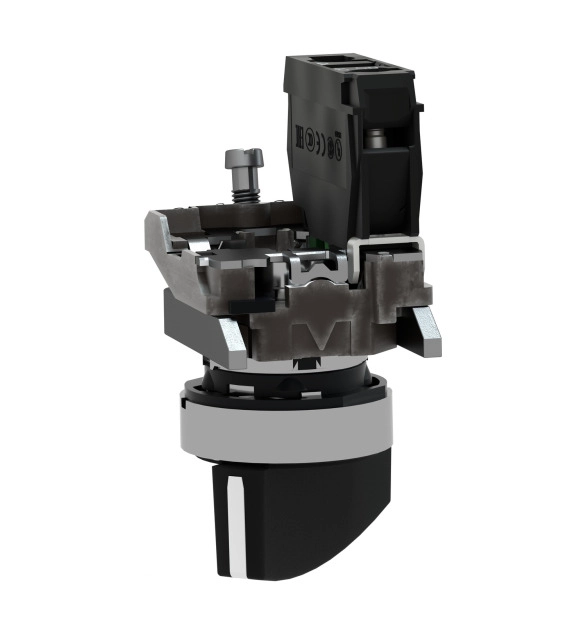

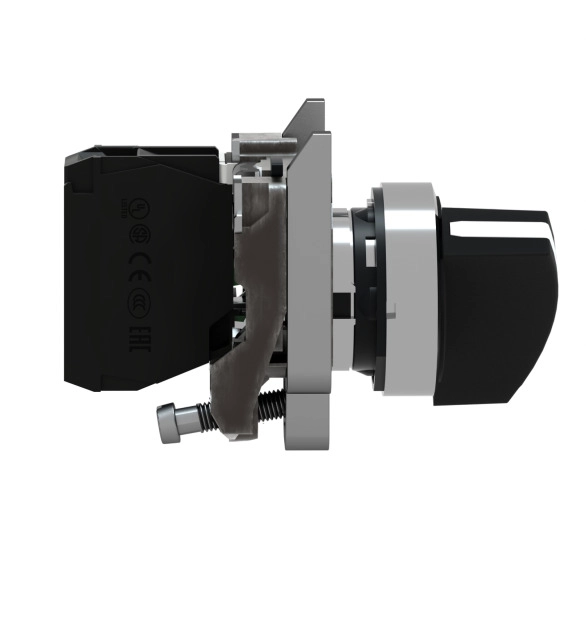

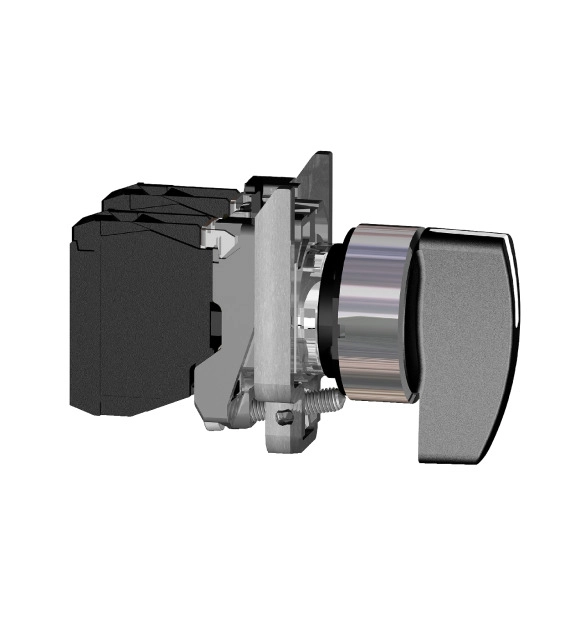

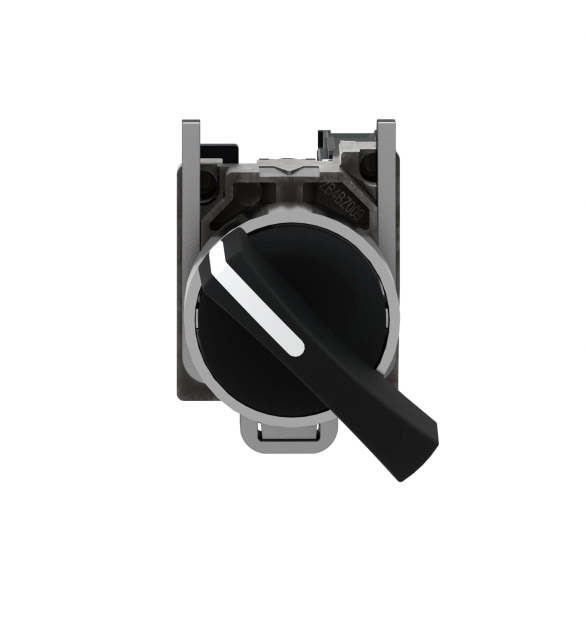

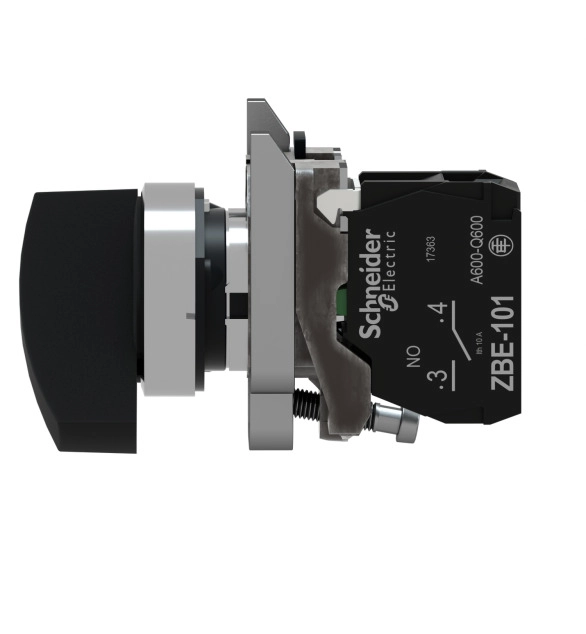

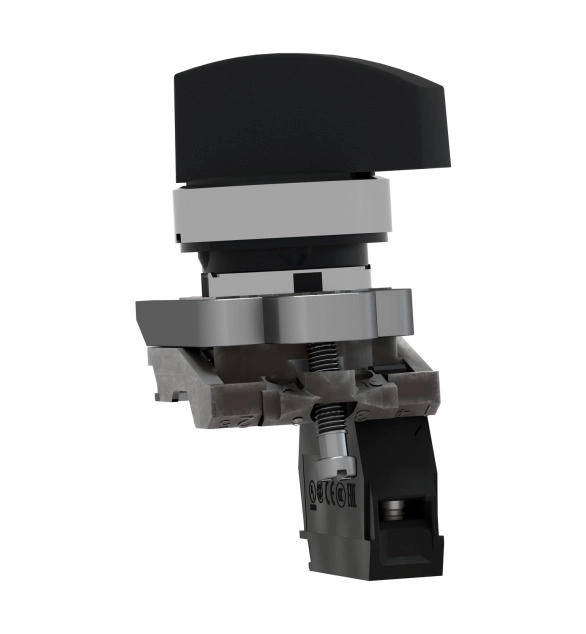

SS metal hand 2pos stay put 1NO ATEX
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Number of contacts as normally closed contact
1
-
Colour front ring
EV000291
-
Hole diameter
22.5
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Suitable for illumination
FALSE
-
Switching function latching
FALSE
-
Degree of protection (NEMA)
EV000154
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Type of button
EV003619
-
Degree of protection (IP)
EV006422
-
Number of command positions
1
-
Spring-return
TRUE
-
Material front ring
EV000914
-
Colour button
EV008843
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This red pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
