СКУ: ATS01N125FT
Софт-стартер за асинхронен двигател - ATS01 - 25 A - 110..480V - 2.2..11 KW
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000509
-
Release class
EV000154
-
With display
TRUE
-
Function
EV014006
-
Rated surrounding temperature without derating
40
-
Internal bypass
TRUE
-
Rated operation current Ie at 40 °C Tu
6
-
Torque control
FALSE
-
Integrated motor overload protection
FALSE
-
Rated operating voltage Ue
380
-
Rated power three-phase motor, inline, at 400 V
1.5

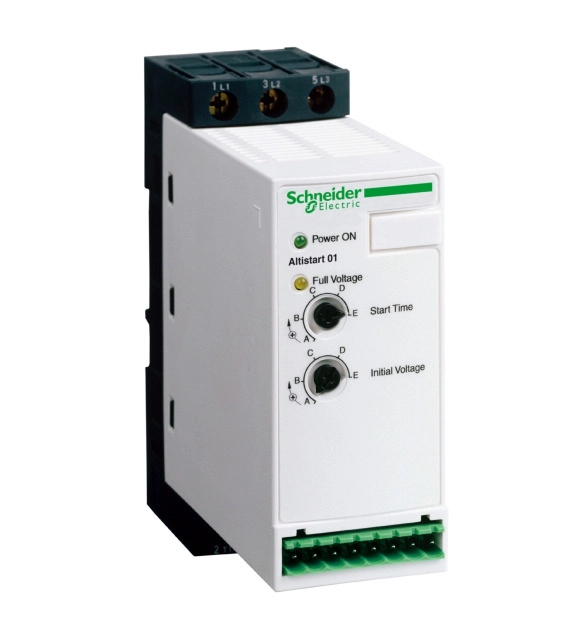

This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 6A. This Altistart 01 can be used for a motor rated power up to 1.1kW or 1.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
