СКУ: CAE40F5

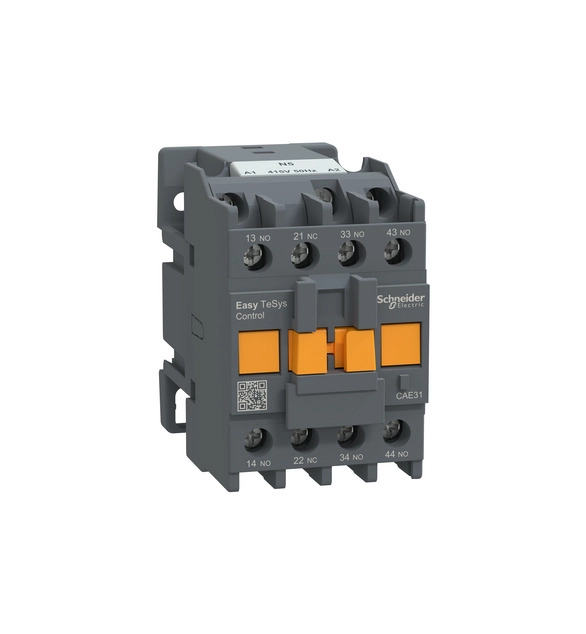

Спомагателен контактор TESYS E 4NO 110V

  • Brand
    Schneider Electric
  • Connection type auxiliary circuit
    EV000415
  • Voltage type for actuating
    EV000460
  • Rated control supply voltage Us at AC 50HZ
    110
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as change-over contact
  • With LED indication
    FALSE
  • Suitable for manual operation
    FALSE
  • Interface
    FALSE
  • Number of auxiliary contacts as normally open contact
    3
  • Mounting method
    EV010333
  • Rated operation current Ie, 400 V
    10
  • Number of auxiliary contacts as normally closed contact, delayed switching
  • Number of auxiliary contacts as normally open contact, leading

Easy TeSys control relay for utilization categories AC-15/AC-14 up to 10A/690V. It provides 4 instantaneous contacts (3NO+1NC), a 110V 50Hz AC coil, connections by screw clamp terminals. For demanding applications with standard operating rates until 3 cycles/second, it procures standard reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi-standards certified (CB scheme, CCC, EAC, BIS) and Environmental compliant (RoHs/Reach).
