СКУ: A9C70344

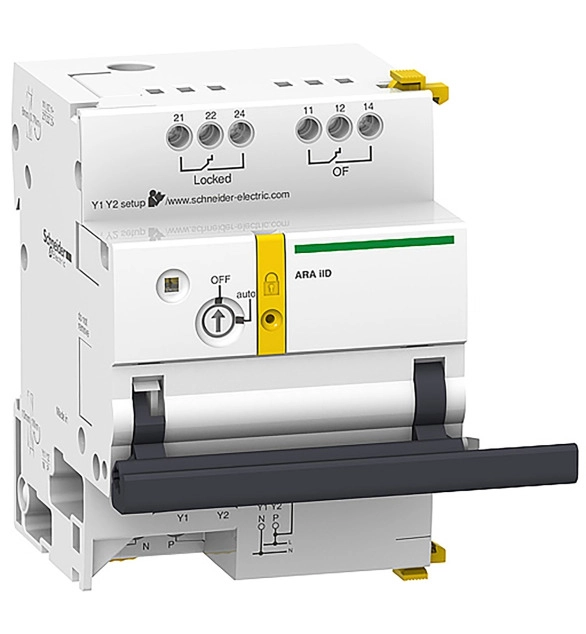

Acti9 - Спомагателен автоматичен затварящ механизъм ARA за iID 4P - 1 Prog
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Rated voltage
230
-
With auto test for earth leakage function
FALSE
-
Suitable for max. number of poles main contact unit (total)
4
-
Installed at the factory
FALSE
-
Number of contacts as normally closed contact
2
-
Suitable for max. current main contact unit
100
-
Number of contacts as change-over contact
-
Number of fault-signal switches
-
Number of contacts as normally open contact
-
Width in number of modular spacings
3.5
-
Rated switch current
1
-
Additional equipment
EV009773
-
Device fitting
EV009774
This Acti9 ARA iID automatic recloser auxiliary is dedicated for iID residual current circuit breakers. It performs 4 programs of automatic reclosing of the associated protection device after tripping. It increase the availability of installations without supervision, isolated, hard of access and demanding very great availability by restoring them to operation without intervention by personnel in the event of a transiant fault. The width in 9mm pitches is 7. For the ARA iC60, the operator can choose predefined reclosing programm which allows the safety and availability of facilities to be reconciled taking into account the facility environment. This device controls 4P installations. The circuit is placed in safety configuration by the padlocking device. This Acti9 iQuick PRD40r is compatible for TT and TN-S earthing system. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C.
