СКУ: TPSAUX33
"Спомагателен контакт, TransferPacT, Индикация за позиция ИЗКЛ"
-
Brand
Schneider Electric
-
Lamp holder
EV000494
-
Mounting method
EV000154
-
Number of contacts as normally open contact
2
-
Number of contacts as change-over contact
4
-
Model
EV000544
-
Number of contacts as normally closed contact
2
-
Type of electric connection
EV011482

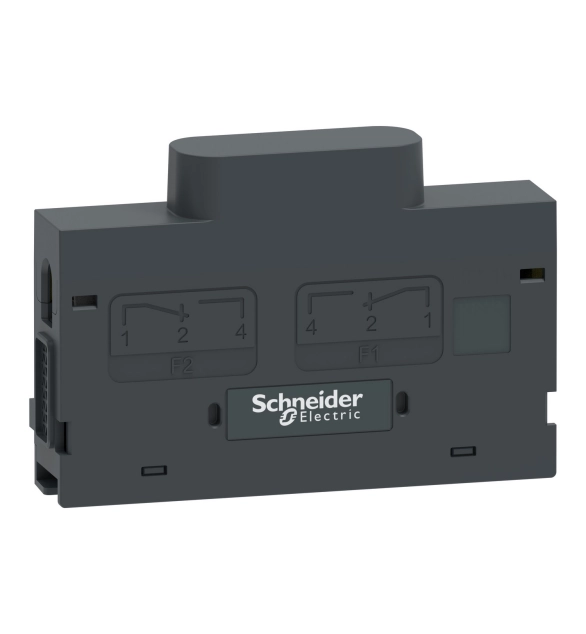

TPSAUX33 is auxilary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on OFF poisition for TransferPacT transfer switch. This contact compostion of signalling is 2NC+2NO. The rated operational current(Ie) is provided 2A@250VAC. It is mounted mode "clip-on" side by side on the right of transfer switch. This wiring capacity is 0.75-2.5 mm²(18-14 AWG) with PZ2 screw driver.
