СКУ: TPSAUX32
"Спомагателен контакт, TransferPacT, Индикация за източник I или източник II"
-
Brand
Schneider Electric
-
Lamp holder
EV000494
-
Mounting method
EV000154
-
Number of contacts as normally open contact
2
-
Number of contacts as change-over contact
4
-
Model
EV000544
-
Number of contacts as normally closed contact
2
-
Type of electric connection
EV011482

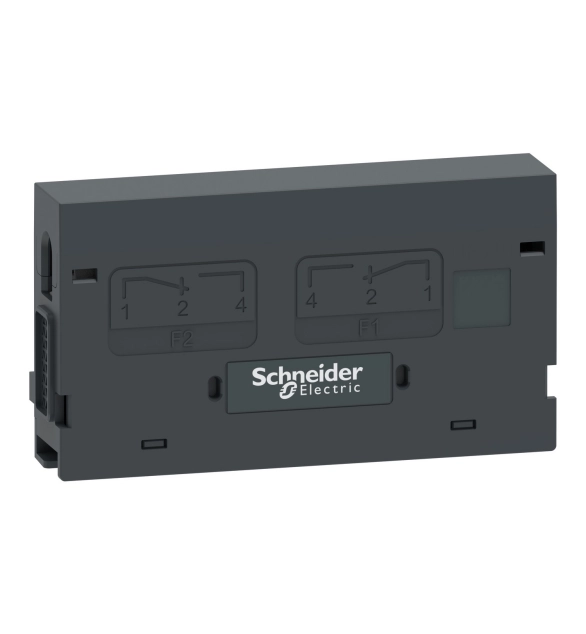

TPSAUX32 is auxilary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on source 1 or source 2 for TransferPacT transfer switch. This contact compostion of signalling is 2NC+2NO. The rated operational current(Ie) is provided 2A@250VAC. It is mounted mode "clip-on" side by side on the right of transfer switch. This wiring capacity is 0.75-2.5 mm²(18-14 AWG) with PZ2 screw driver.
