СКУ: VP229E-25BQSNT

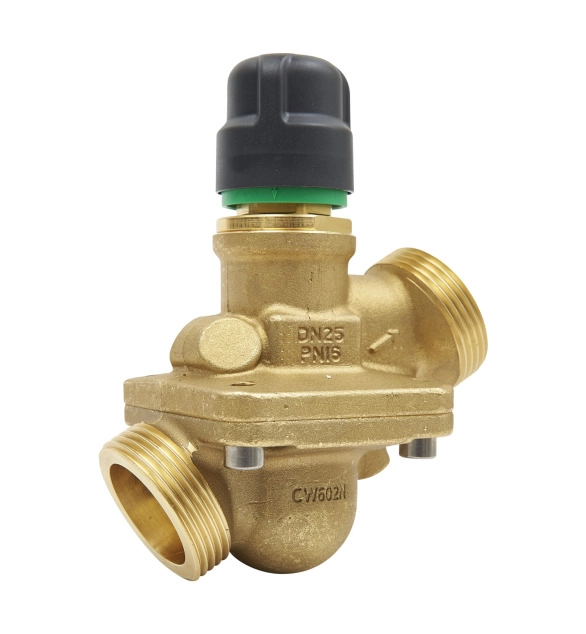

SpaceLogic VP229E PIBCV (PICV), 2-Way, PN16, DN25, G1-? Ext. Thread, Std Flow: 0.34…1.7 m?/h (…0.47 l/s), No PT plugs
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Surface protection
EV006034
-
Height
100
-
Width
132
-
Suitable for manual operation
TRUE
-
Position reporting system
EV000494
-
Ambient temperature
-10
-
Auxiliary contacts
FALSE
-
Adjustable operating range
FALSE
-
With coupling connection 1
FALSE
-
With coupling connection 2
FALSE
-
Housing material
EV000149
-
Flange compression class
EV020104
-
Leakage loss of Kvs value
0.01
-
Outer pipe diameter all connections
25
-
Adjustable position feedback signal
FALSE
-
Control signal
EV021430
-
With end contacts
FALSE
-
Article compression class
EV020104
-
Max. medium temperature (continuous)
120
-
Min. medium temperature (continuous)
-10
-
Nominal diameter
EV020211
-
Connections
EV000154
-
Zero-pressure return flow
EV000494
-
Closing pressure
16
-
Characteristic curve
EV020004
-
Max. pressure difference in opened position
16
-
Material quality
EV020186
The VP229E is an automatic balancing and control valve that provide flow limitation with full control authority over hydronic regulation. It provides stable flow regulation regardless of pressure fluctuations in the system and is adjustable flow limitation set point. Applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels. Reduced Energy Consumption, Improved Comfort, Reduced Pumping Costs, Reduced Installation Costs, Easy and quick Comminssioning, and Improved Reliability. Low Flow.
