SpaceLogic VP220F PIBCV (PICV) Контролен клапан, 2-Way, PN16, DN65, Flanged, Standard Flow: 8...20 m?/h (2.2...5.6 l/s). | Spark & Co
  • 3D
|

СКУ: VP220F-65CQS

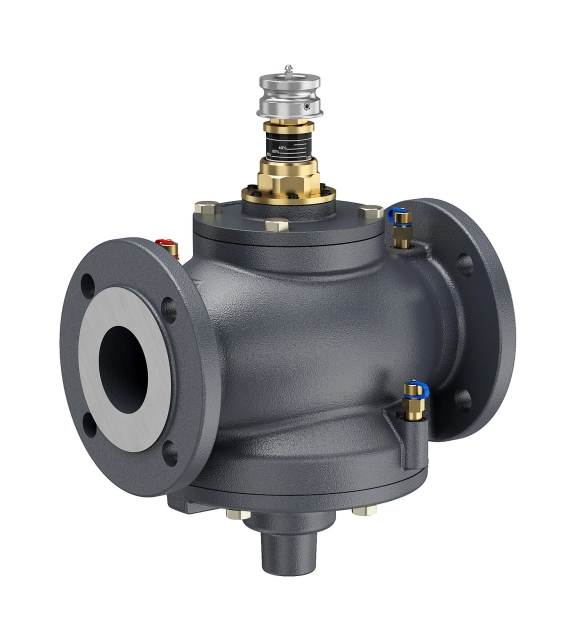

SpaceLogic VP220F PIBCV (PICV) Контролен клапан, 2-Way, PN16, DN65, Flanged, Standard Flow: 8...20 m?/h (2.2...5.6 l/s).

  • Brand
    Schneider Electric
  • Suitable for heating
    TRUE
  • Suitable for cooling
    TRUE
  • Surface protection
    EV006034
  • Connection 1
    EV000106
  • Flange compression class
    EV020104
  • Article compression class
    EV020104
  • Suitable for process water
    TRUE
  • Characteristic curve
    EV021552
  • Leakage loss of Kvs value
    0.02
  • Suitable for tap water
    TRUE
  • Automatic flow control
    FALSE
  • Outer pipe diameter connection 1
    50
  • Nominal diameter connection 1
    EV020214
  • Min. medium temperature (continuous)
    -10
  • Material housing
    EV000117
  • Material quality
    EV020188
  • Max. medium temperature (continuous)
    200
  • Stroke length
    25
  • Kvs value
    40

The VP220F is an automatic balancing and control valve that provide flow limitation with full control authority over hydronic regulation. It provides stable flow regulation regardless of pressure fluctuations in the system and is adjustable flow limitation set point. Applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels. Reduced Energy Consumption, Improved Comfort, Reduced Pumping Costs, Reduced Installation Costs, Easy and quick Comminssioning, and Improved Reliability. DN80, Flanged Valve. Standard Flow.
