СКУ: MP130-230F

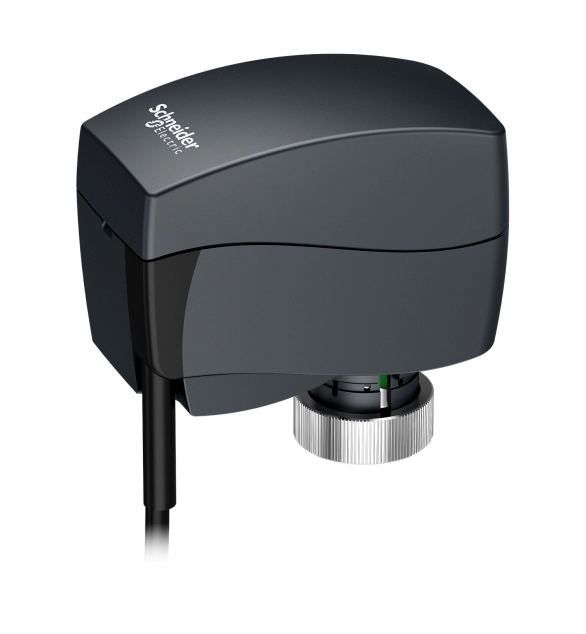

SpaceLogic MP130 PIBCV Actuator, Floating, Non-Spring Return, 230 Vac, 130 N, IP42
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Material housing
EV000154
-
Height
55
-
Width
121
-
Potential free switch contact
FALSE
-
Control signal
EV000154
-
Regulation type splitrange
FALSE
-
Model
EV020004
-
Return at zero supply voltage
FALSE
-
Regulation type on/off
FALSE
-
Position reporting system
EV000494
-
Self-adjusting travel length
FALSE
-
Suitable for valve
TRUE
-
Auxiliary contacts optional
FALSE
-
With safety function
TRUE
-
Automatic travel recognition
FALSE
-
Type of safety function
EV000154
-
With mechanical setting indicator
FALSE
-
Degree of protection (NEMA)
EV000069
-
Suitable for manual operation
FALSE
-
Deactivated when closed
FALSE
-
Auxiliary contacts
FALSE
-
End contacts
EV000494
-
Principle of operation safety function
EV000154
-
With top flange direct mount according to ISO 5211
FALSE
-
Ambient temperature
-40
-
Adjustable operating range
FALSE
-
Depth
50
-
Degree of protection (IP)
EV006417
-
Connection to stop valve
EV000494
-
Suitable for air accessory
TRUE
-
Adjustable position feedback signal
FALSE
-
Regulation type modulating
FALSE
-
Supply voltage
EV021412
-
Max. electric power input
8
-
Stroke length
5.5
-
Adjusting force
130
-
Length of connection cable
1.5
-
Allowable relative humidity
The MP130-23F is 3 wire floating actuators used together with SpaceLogic PIBCV (DN1…32) automatic balance and control valves. Typical applications include temperature control on terminal units (fan-coils, chilled ceilings) and small air-handling units. Gap detection stem up position, 3 point version, Force switch-off at stem down position prevents overload of actuator and valve. Maintenance-free lifetime. Power Supply: 230 Vac +10%...-15%. Close of Force: 130 N. Protection code IP42, III safety extra-low voltage protection class. Max. Stroke 5.5 mm. LVD: 26/95/EC.
