СКУ: MG600C-SRU

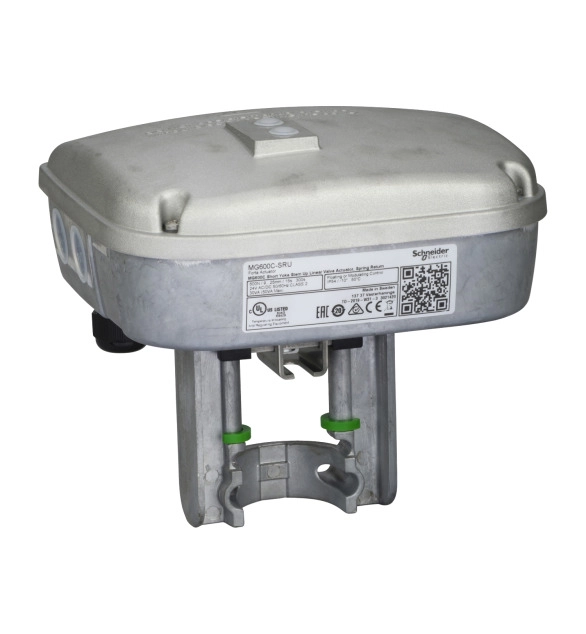

SpaceLogic MG600C-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return UP, 24 Vac/dc, 600 N, IP54
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Degree of protection (IP)
EV006419
-
Suitable for manual operation
TRUE
-
Connection to stop valve
EV000154
-
Adjustable position feedback signal
TRUE
-
Control signal
EV000154
-
Deactivated when closed
TRUE
-
Supply voltage
EV021410
-
Regulation type splitrange
FALSE
-
Regulation type modulating
TRUE
-
Model
EV020004
-
Return at zero supply voltage
FALSE
-
Regulation type on/off
FALSE
-
End contacts
EV000600
-
Operating time
15
-
Suitable for air accessory
FALSE
-
Position reporting system
EV000494
-
Adjusting force
600
-
Self-adjusting travel length
FALSE
-
Suitable for valve
TRUE
-
Ambient temperature
-10
-
Auxiliary contacts optional
FALSE
-
Material housing
EV000072
-
With safety function
TRUE
-
Adjustable operating range
TRUE
-
Length of connection cable
100
-
Automatic travel recognition
FALSE
-
Stroke length
32
-
Type of safety function
EV000154
-
With mechanical setting indicator
FALSE
-
Degree of protection (NEMA)
EV000069
-
Width
185
-
Energy consumption at rest
21
-
Height
246
-
Allowable relative humidity
The MG600C-SRU is a linear eletro-mechanicl actuator with spring return operation for the control of the two-way VG210R, and three way VG310R, globe Valves. The actuator utilises brushless DC motors and a high resolution control board allow a very fine fluid control. The working range and end point switches of the actuator are adjusted automatically to the stroke of the Valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the Valve stroke. Spring return stem UP (Retract) on loss of power. Supply Voltage: 24 Vac. Force nominal: 600 N, enclosure rating: IP54. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc. Stroke: 9-32 mm.
