СКУ: MG600C-SRD

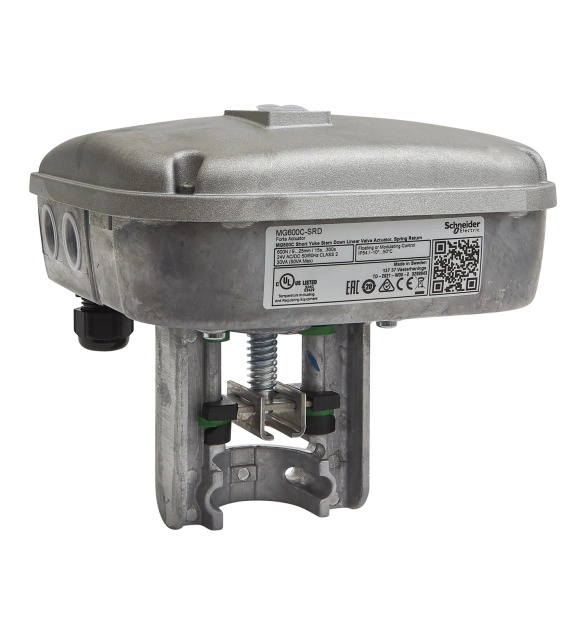

SpaceLogic MG600C-SR Actuator for Globe Valves, Multi-Signal Control, Spring Return DOWN, 24 Vac/dc, 600 N, IP54
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Suitable for manual operation
TRUE
-
Degree of protection (IP)
EV006608
-
Potential free switch contact
FALSE
-
Adjustable position feedback signal
TRUE
-
Control signal
EV000154
-
Regulation type splitrange
FALSE
-
Regulation type modulating
TRUE
-
Model
EV020004
-
Return at zero supply voltage
FALSE
-
Regulation type on/off
FALSE
-
Suitable for air accessory
FALSE
-
Position reporting system
EV000494
-
Self-adjusting travel length
FALSE
-
Suitable for valve
TRUE
-
Auxiliary contacts optional
FALSE
-
Adjustable operating range
TRUE
-
Automatic travel recognition
FALSE
-
With mechanical setting indicator
FALSE
-
Deactivated when closed
FALSE
-
Auxiliary contacts
FALSE
-
End contacts
EV000494
-
With top flange direct mount according to ISO 5211
FALSE
-
Allowable relative humidity
5
-
Supply voltage
EV021685
-
Degree of protection (NEMA)
EV000600
-
Connection to stop valve
EV000494
-
With safety function
FALSE
-
Transmission
EV006116
-
Energy consumption at rest
3
-
Adjusting force
350
-
Ambient temperature
-5
-
Max. electric power input
7.2
-
Operating time
102
-
Stroke length
0.9375
The MG600C-SRD is a linear eletro-mechanicl actuator with spring return operation for the control of the two-way VG210R, and three way VG310R, globe Valves. The actuator utilises brushless DC motors and a high resolution control board allow a very fine fluid control. The working range and end point switches of the actuator are adjusted automatically to the stroke of the Valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the Valve stroke. Spring return stem down (extend) on loss of power. Supply Voltage: 24 Vac. Force nominal: 600 N, enclosure rating: IP54. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc. Stroke: 9-32 mm.
