СКУ: MG600C

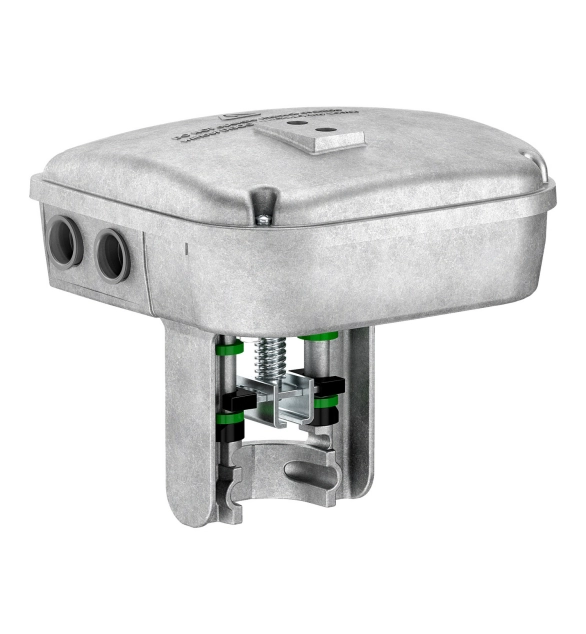

SpaceLogic MG600C Actuator for Globe Valves, Multi-Signal Control, Non-Spring Return, 24 Vac/dc, 600 N, IP54
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Width
173
-
Degree of protection (IP)
EV006419
-
Suitable for manual operation
TRUE
-
Connection to stop valve
EV000154
-
Adjustable position feedback signal
TRUE
-
Control signal
EV000154
-
Deactivated when closed
TRUE
-
Supply voltage
EV021410
-
Regulation type splitrange
FALSE
-
Regulation type modulating
TRUE
-
Model
EV020004
-
Return at zero supply voltage
FALSE
-
Height
181
-
Regulation type on/off
FALSE
-
End contacts
EV000600
-
Operating time
15
-
Suitable for air accessory
FALSE
-
Energy consumption at rest
4
-
Position reporting system
EV000494
-
Adjusting force
600
-
Self-adjusting travel length
FALSE
-
Suitable for valve
TRUE
-
Ambient temperature
-10
-
Auxiliary contacts optional
FALSE
-
Material housing
EV000072
-
With safety function
TRUE
-
Adjustable operating range
TRUE
-
Length of connection cable
100
-
Automatic travel recognition
FALSE
-
Depth
117
-
Stroke length
32
-
Type of safety function
EV000154
-
With mechanical setting indicator
FALSE
-
Degree of protection (NEMA)
EV000069
-
Allowable relative humidity
The MG600C-S is a compact linear eletro-mechanicl actuator for the control of the two-way VG210R, and three way VG310R globe Valves. The actuator utilises brushless DC motors and a high resolution control board allow a very fine fluid control. The working range and end point switches (optional accessory) of the actuator are adjusted automatically to the stroke of the Valve. When driven electrically, the fimware of the actuator calibrates a consistent running time regardless of the Valve stroke. Stay in place upon power failure is ensured by a solenoid lock on the motor. Supply Voltage: 24 Vac. Force nominal: 600 N, enclosure rating: IP54. Position Feedback Output Signal: 2…10 Vdc, 0…5 Vdc. Stroke: 9-32 mm.
