СКУ: MTN6710-0102S

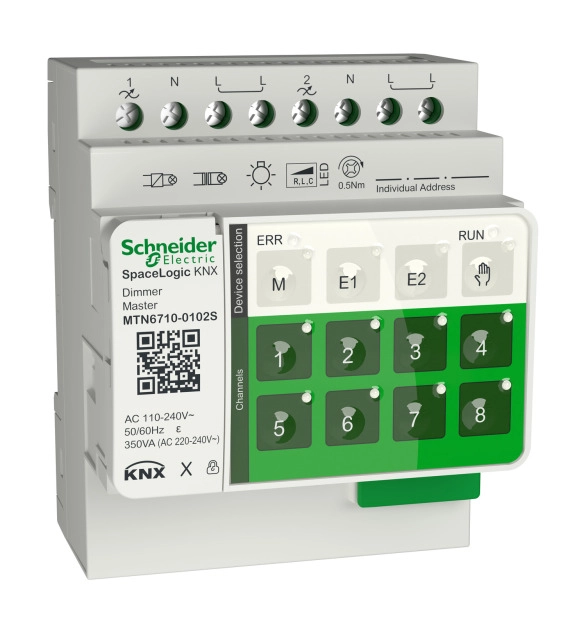

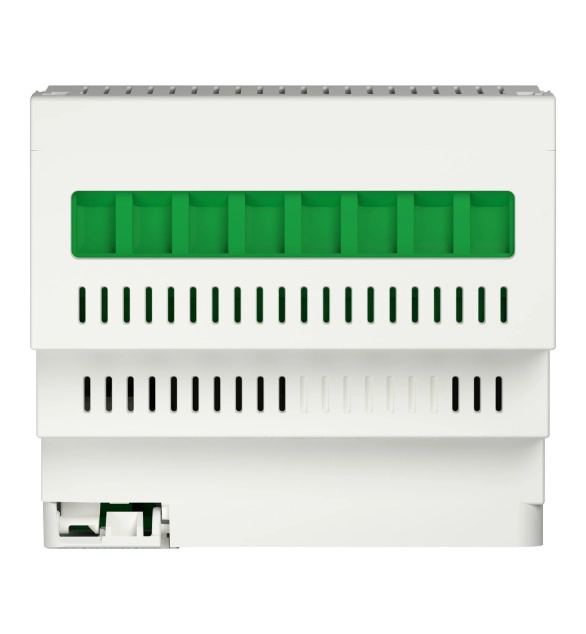

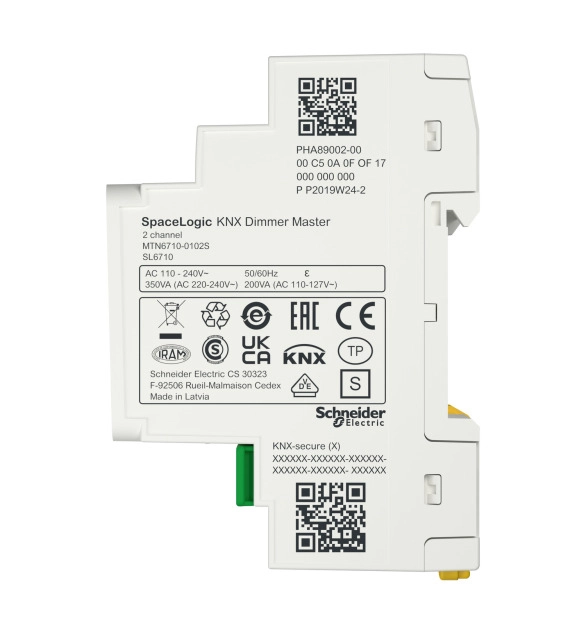

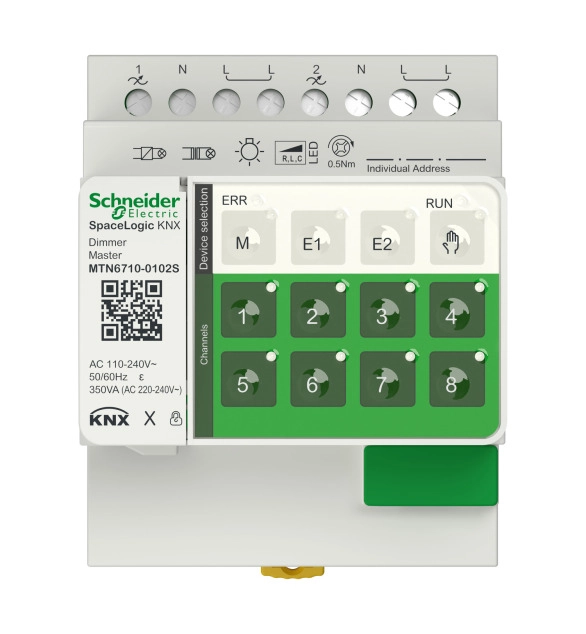

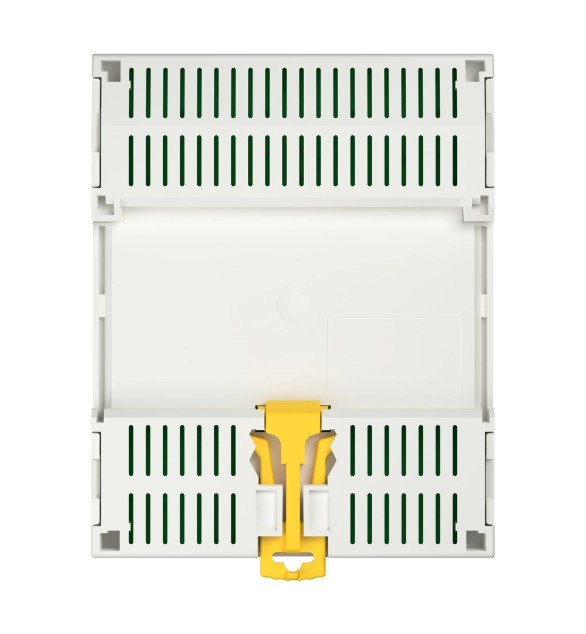

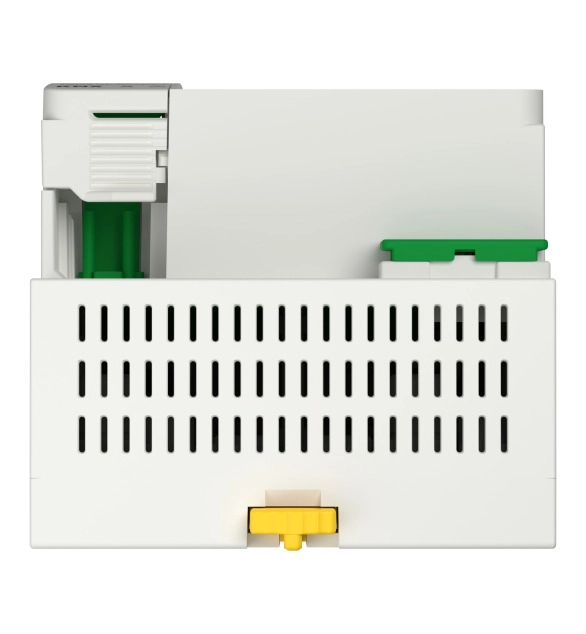

SpaceLogic KNX, Secure, Dimmer Master
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
4
-
Frequency
50
-
With LED indication
TRUE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Bus system LON
FALSE
-
Mounting method
EV006471
-
Bus system radio frequent
FALSE
-
Other bus systems
EV000494
-
Radio frequent bidirectional
FALSE
-
With bus connection
TRUE
-
Bus system KNX
TRUE
-
Number of outputs
2
-
Type of load
EV000028
-
Substation input
FALSE
-
Model
EV002761
-
Local operation/hand operation
TRUE
-
Parallel-service possible
FALSE
-
Power boost suitable
FALSE
-
Max. switching power LED
200
-
Bus module detachable
TRUE
-
Min. depth of built-in installation box
66
-
Max. control current
10
-
Output power
350
-
Voltage
110
The Schneider Electric device which is SpaceLogic KNX Dimmer Master, it is secure and reliable. Controlling the lighting, with the potential for advanced features. Introducing the Modular Master Extension concept featuring standardized sizes and module prefab link. Achieving high component performance with KNX Secure communication. This device allows for the separate regulation of up to two outputs. For switching and dimming dimmable LED, incandescent, HV halogen, LV halogen lamps using dimmable wound transformers or dimmable compact fluorescent lamps. You can manually operate all of the outputs by using push-buttons. You can choose to use KNX Data Secure communication through either ETS or eConfigure software. The SpaceLogic KNX Universal Dimming Extensions can increase the number of dimming channels. Connecting a SpaceLogic KNX Switch/Blind Extension increases the Master’s channels with Switch/Blind channels. The nominal operational voltage is 110-240VAC, The frequency is 50-60Hz. The product includes two electronic transformers, each with a capacity of 350W/VA and compatible with 220-240V incandescent bulbs. The lamp has two modes: RC mode with 2x200W capacity and RL mode with 2x60W capacity. It is compatible with 110-127V circuits and has a maximum of 0.5A. Two 200W/VA transformers for incandescent and HV electronic/wounded, with LED lamps in RC and RL modes, max 1.5A and 0.6A respectively, for 110-127V input. The support is mounted using a DIN rail. The dimensions are (W) 8.4mm x (H) 12.8mm x (D) 15.9mm. The product is white in color. This device has an IP rating of IP20. The SpaceLogic KNX Module and Cable Link are available. Accelerate the delivery of your project by utilizing ETS Express commissioning or eConfigure software. Ensure data privacy protection with KNX Data Secure capabilities and certification.
