SpaceLogic Central I/O UI-8/DO-FC-4-2 | Spark & Co
  • 3D
|

СКУ: SXWUI8D4X10002

SpaceLogic Central I/O UI-8/DO-FC-4-2

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Width in number of modular spacings
    5
  • Mounting method
    EV000154
  • Bus system KNX radio
    FALSE
  • Bus system Powernet
    FALSE
  • Bus system KNX
    FALSE
  • Bus system LON
    FALSE
  • Bus system radio frequent
    FALSE
  • Other bus systems
    EV000494
  • With bus connection
    TRUE
  • Number of inputs
    8
  • Local operation/hand operation
    FALSE
  • Number of outputs
    4

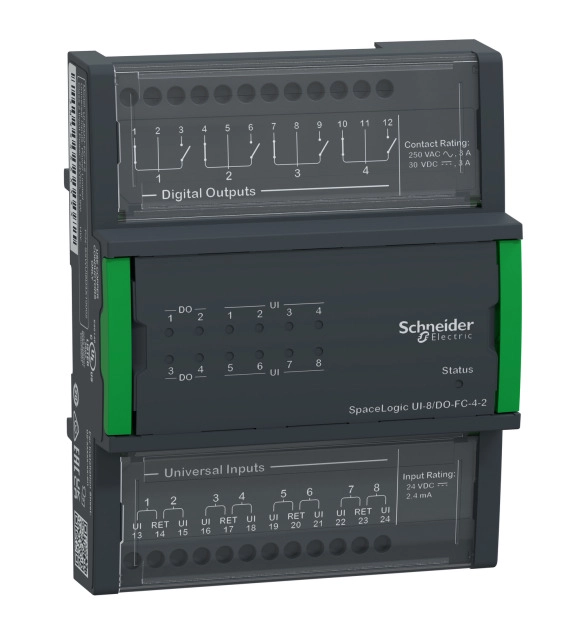

The SpaceLogic UI-8/DO-FC-4-2 is a universal input, 8 channel and digital output, 4 channel I/O expansion module for the SpaceLogic AS-P Server. The universal inputs are ideal for any mix of temperature, pressure, flow, status points and similar point types in a building control system. The digital outputs support digital Form C point types designed for direct load applications. The UI-8/DO-FC-4-H-2 I/O expansion module features 8 universal inputs and 4 digital Form C outputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110002).
