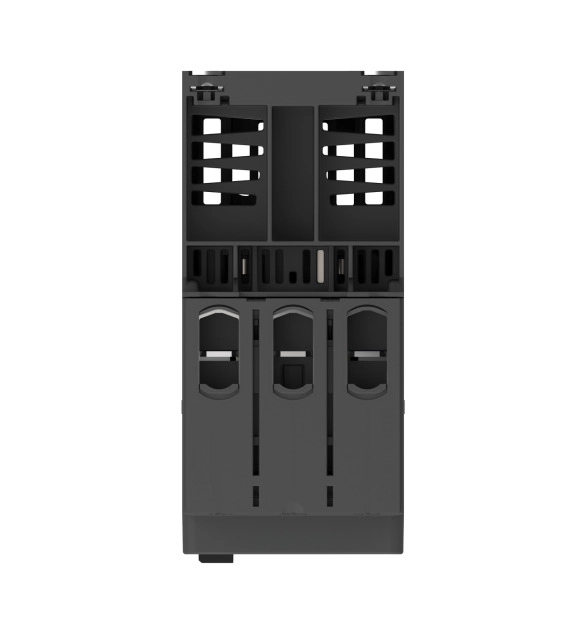

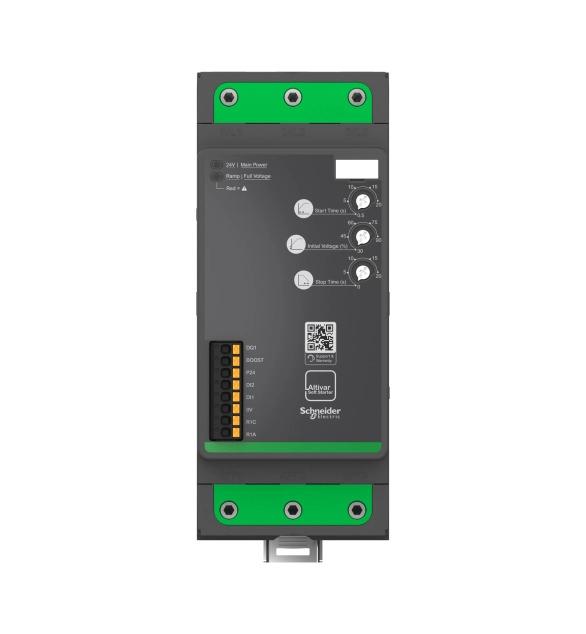

Софтстартер Altivar ATS130, 80A, 200-480V AC, контролно захранване 24V DC

This soft starter belongs to the Altivar Soft Starter ATS130 range that is intended to start and stop asynchronous motors supplied from 200 to 480V. With an operational rated current of 80A in normal duty, it supplies motor from 22 to 45kW according to mains voltage. Compact, it provides mechanical and electrical flexibility in control panel design. ATS130 is preventive maintenance free and allows optimized motor management especially in combination with TeSys Deca motor circuit breaker. It is designed with Everlink power terminals and spring control terminals that avoid annual wire retightening. This soft starter has the same width (80mm) as the TeSys Deca frame 4 motor circuit breaker; it allows the building of the ATS130 Soft Motor Starter. Its dimensions are 80mm (width) x 180mm (depth) x 222 mm (height), and it weighs 2.06kg. Altivar Soft Starter ATS130 is designed to address pumps, fans, compressors, conveyors, and other simple machines. It conforms to the IEC/EN60947-4-1 standard and has received the CE, UL, EAC, UKCA, CCC, and RCM certifications. It is possible to add a fixing kit to mount the TeSys Deca frame 4 motor circuit breaker on top of ATS130 or a cooling fan to extend the number of starts per hour. The ATS130 soft starters can be mounted on a backplate or on a DIN rail, side by side, and they are compatible with a 200mm depth cabinet. The Altivar Soft Starter ATS130 range is preventive maintenance-free and increases operational efficiency during design, manufacturing, and commissioning. It is designed to take environmental considerations beyond current directives and regulations and complies with RoHS and REACH.
