SCHNEIDER ELECTRIC Thermal Overload Relay - 63..80 A, HS code:FR, COO:85364900, 0.51kg /PO:40431185/ | Spark & Co
  • 3D
|

СКУ: LR3D3363

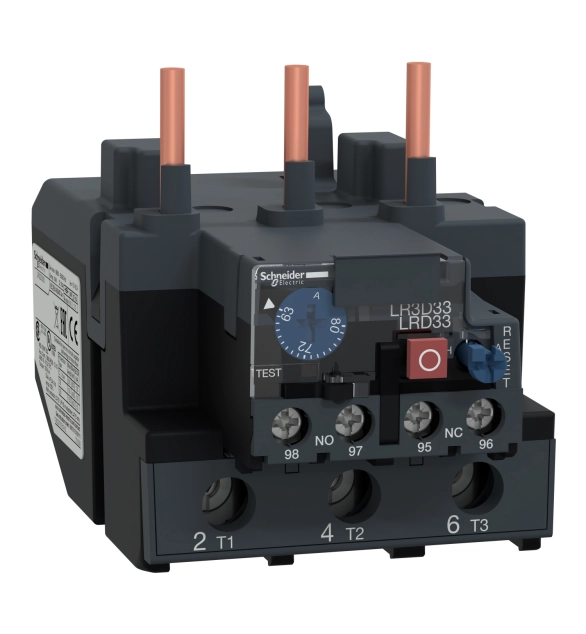

SCHNEIDER ELECTRIC Thermal Overload Relay - 63..80 A, HS code:FR, COO:85364900, 0.51kg /PO:40431185/

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Mounting method
    EV003970
  • Reset function automatic
    TRUE
  • Reset function input
    FALSE
  • Max. rated operation voltage Ue
    690
  • Release class
    EV011240
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Reset function push-button
    TRUE
  • Number of auxiliary contacts as change-over contact
  • Adjustable current range
    1.8

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW at 400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
