SM wo/mount plat 2D 2000x1200x600 | Spark & Co
  • 3D
  • 3D
|

СКУ: NSYSM2012602D

SM wo/mount plat 2D 2000x1200x600

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • Degree of protection (IP)
    EV006420
  • With glazed door
    FALSE
  • With backside door
    FALSE
  • Depth
    400
  • Colour
    EV000294
  • Number of doors
    2
  • Degree of protection (NEMA)
    EV007990
  • Material
    EV000166
  • Width
    1200
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall mounting
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Pole fastening
    FALSE
  • Impact strength
    EV008784
  • Height
    1800
  • Suitable for metrical mounting
    FALSE
  • Max. permissible load of the door(s) according to IEC 62208
    50
  • Material quality
    EV006908
  • Max. permissible load of the mounting plate according to IEC 62208
    300
  • Surface finishing
    EV013998
  • Number of locks
    3
  • RAL-number
    7039

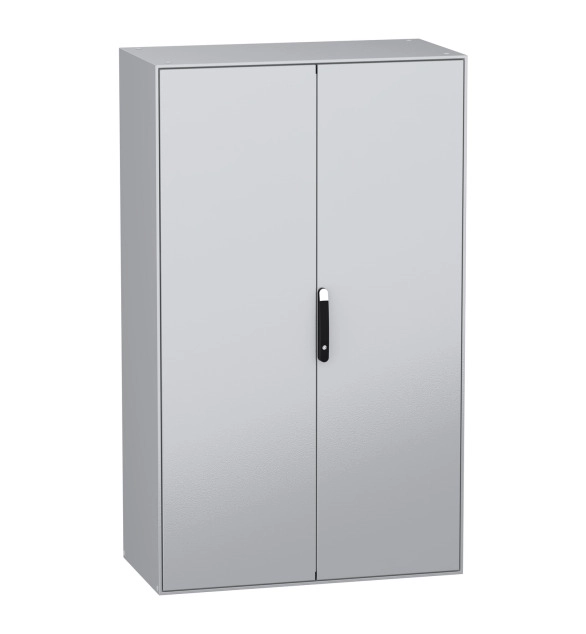

PanelSeT SM is a multi-purpose steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 2000mm, 1200mm and 600mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, two plain doors, one cable gland plate with one entry and four mounting plate brackets. The doors can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The doors and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating.
