СКУ: GV2RT03

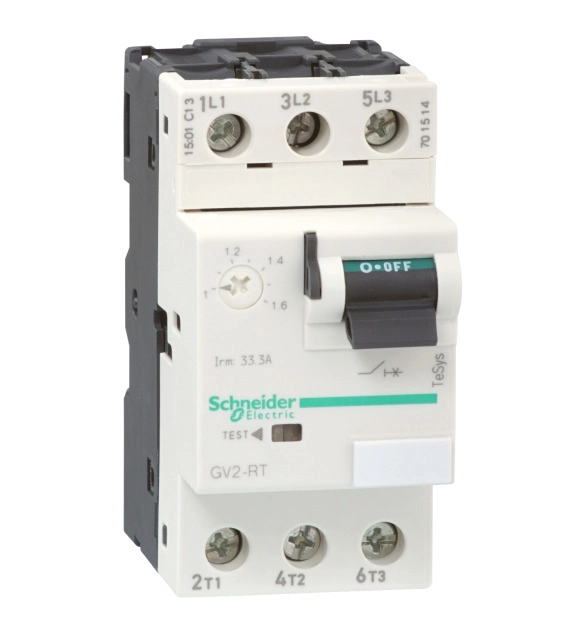

Моторен прекъсвач 0,25-0,40 20XIN

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Degree of protection (IP)
    EV006405
  • Type of control element
    EV000554
  • With integrated under voltage release
    FALSE
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100
  • Height
    89
  • Device construction
    EV009311
  • Rated permanent current Iu
    1
  • Adjustment range undelayed short-circuit release
    13
  • Switch off technique
    EV009462
  • With thermal protection
    TRUE
  • Width
    44.5
  • Rated operating voltage
    230
  • Depth
    78.2
  • Rated operation power at AC-3, 400 V
    0.25
  • Overload release current setting
    0.63
  • Rated operation power at AC-3, 230 V
    0.12

TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW/400V. It provides a thermal-magnetic protection with a thermal setting range 20-25A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA/400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
