СКУ: NSYSM1812502D
SM wo/mount plat 2D 1800x1200x500
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
Degree of protection (IP)
EV006420
-
With glazed door
FALSE
-
Depth
600
-
With backside door
FALSE
-
Colour
EV000294
-
Number of doors
2
-
Degree of protection (NEMA)
EV007990
-
Material
EV000166
-
Connectable
FALSE
-
Height
2000
-
Suitable for outdoor set-up
FALSE
-
Width
1600
-
Detached
FALSE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall mounting
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Impact strength
EV008784
-
Suitable for metrical mounting
FALSE
-
Number of locks
1
-
Max. permissible load of the door(s) according to IEC 62208
50
-
Material quality
EV006908
-
Max. permissible load of the mounting plate according to IEC 62208
300
-
RAL-number
7048
-
Surface finishing
EV013998

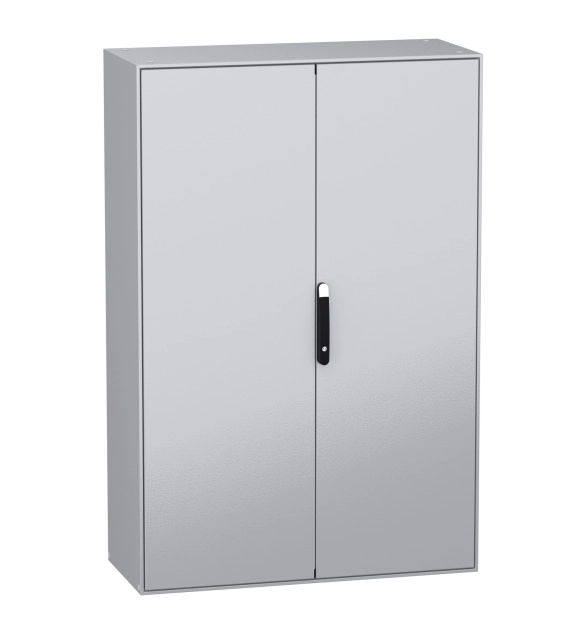

PanelSeT SM is a multi-purpose steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 1800mm, 1200mm and 500mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, two plain doors, one cable gland plate with one entry and four mounting plate brackets. The doors can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The doors and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating.
