СКУ: 31140

Ръчно превключване на резервно захранване INS250 - 3 полюса - 100 A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Suitable for intermediate mounting
    FALSE
  • Suitable for floor mounting
    FALSE
  • Suitable for distribution board installation
    TRUE
  • Type of control element
    EV004095
  • Material housing
    EV000139
  • Number of poles
    4
  • Degree of protection (IP), front side
    EV006415
  • With zero (off) position
    TRUE
  • With retraction in 0-position
    FALSE
  • Model
    EV009208
  • Complete device in housing
    TRUE
  • Suitable for front mounting
    FALSE
  • Rated permanent current Iu
    630

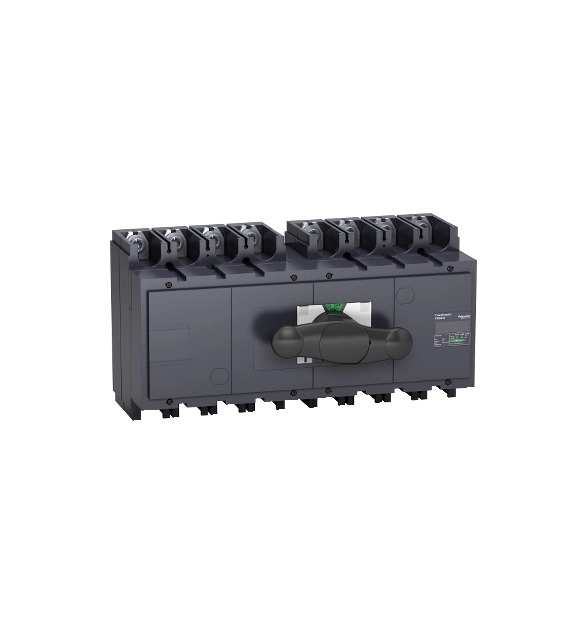

FXM100 is a complete manual source changeover assembly for two Compact INS250-100 3 poles switch disconnectors. It provides an easy way to implement source changeover functions with small size, taking up less room in the switchboard. The operational current is 100A at 690VAC 50/60Hz, in categories AC22A/AC23A. The operational current is 100A at 125VDC (2 poles in series) or at 250VDC (4 poles in series), in categories DC22A/DC23A. There is a single 3 position rotary handle that controls the two switch disconnectors (normal source ON, OFF, replacement source ON). A complete source changeover assembly can be ordered with a single catalogue number. A complete source changeover assembly can be ordered with a single catalogue number.
