СКУ: KSA630ED4306

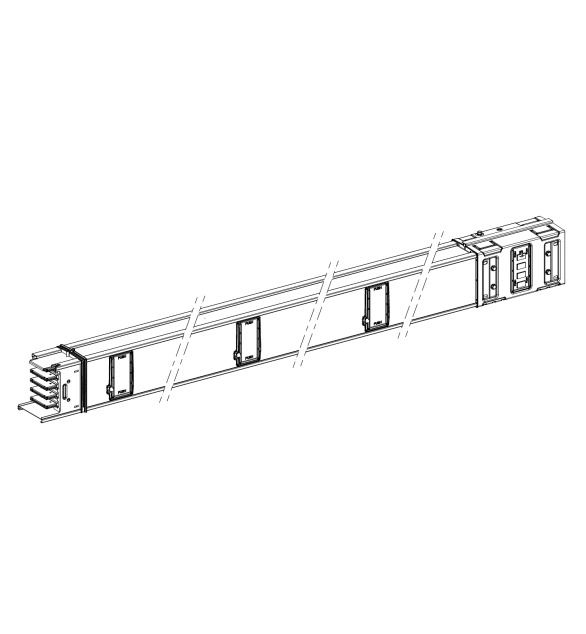

Шинопровод STRAIGHT DISTRIBUTION LENGTH 3M 630 A
-
Brand
Schneider Electric
-
Colour
EV000202
-
Number of poles
4
-
Degree of protection (IP)
EV006420
-
RAL-number
9001
-
Width
113
-
Flexible
FALSE
-
Number of conductors (without earthing)
4
-
Model
EV002646
-
Height
146
-
Rated voltage at AC 50 Hz
690
-
Rated current at AC 50 Hz
630
-
Length
3000
-
Number of tap-off units
6
Canalis busbar trunking for KSA. It's applied to medium power distribution with lubricated sliding contact. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 630A at 35 ℃. Mounted by screws with up neutral position. Distribution length busbar whose material is aluminium and trunking polarity is 3L + N + PE and 3L + PEN. Designed with 6 tap-off outlets. It provides 0.89 µT radiated magnetic field. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
